> EATON - MOELLER > Auxiliary Control and Signalling Elements > 171317

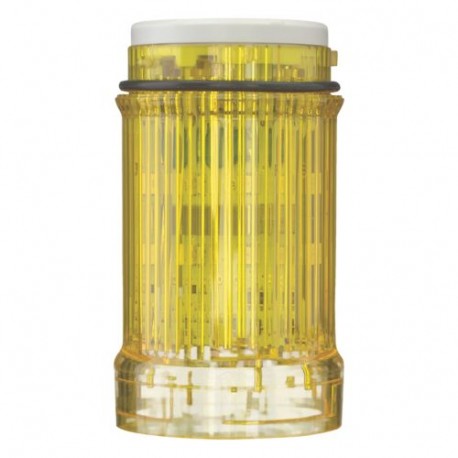

EATON - MOELLER SL4-L24-Y SL4-L24-Y 171317 Y7-171317 EATON ELECTRIC LED continuously light , yellow 24V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL4-L24-Y 171317 Y7-171317 EATON ELECTRIC LED continuously light , yellow 24V

SL4-L24-Y

171317

Y7-171317

EATON - MOELLER

1 Pcs.

LED continuously light , yellow 24V SL4-L24-Y Eaton Moeller® series SL4 Continuous light module; yellow; LED;24 V Continuous light module, Color yellow, Product range: SL signal towers, Degree of Protection: IP66, Protection type UL: Type 4, 4X, 13, Rated operational voltage: Ue= 24 V AC/DC, Type of light: Continuous light, Light elements: LED, Mounting position: As required, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1

Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A SL4-L24-Y 171317 Y7-171317 EATON ELECTRIC LED continuously light , yellow 24V functions as a steady-illumination status indicator within modular signaling towers, commonly used to denote caution, standby modes, or secondary process alerts on manufacturing equipment. Continuous LED elements offer long service life and reliable low-maintenance operation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Function (EF000030): Continuous light
  • Repetition frequency settable (EF018169): No
  • Colour (EF000007): Yellow
  • Outer diameter (EF000015): 43 mm
  • Operating voltage AC 50 Hz (EF008206): 24 V
  • Operating voltage AC 60 Hz (EF008207): 24 V
  • Operating voltage DC (EF008208): 24 V
  • Voltage type (EF000187): AC/DC
  • Lamp type (EF002423): LED
  • Housing colour (EF000136): Black
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 13

More info

▲

General specifications

Product Name
Eaton Moeller® series SL4 Continuous light module
Catalog Number
171317
Model Code
SL4-L24-Y
EAN
4015081679218
Product Length/Depth
43 mm
Product Height
75 mm
Product Width
43 mm
Product Weight
0.042 kg
Certifications
CE
CSA-C22.2 No. 14-10
IEC/EN 60529
UL File No.: E29184
CSA-C22.2 No. 94-91
UL
UL report applies to both US and Canada
CSA Class No.: NKCR7
IEC/EN 60947-5-1
UL 508
Certified by UL for use in Canada
UL Category Control No.: NKCR

Features & Functions

Color
Yellow
Enclosure color
Black
Functions
Continuous light
Light modules
LED
Number of modules
Max. 5 (with standard base)
Max. 10 (with base for mounting on both sides)

General

Connection to SmartWire-DT
No
Current consumption
0.022 - 0.033 A, at 24 V AC/DC
Degree of protection
NEMA 13
IP66
Lifespan, electrical
100,000 h
Light type
Continuous light
Material
Cap: Polycarbonate (PC)
Enclosure: Polycarbonate (PC)
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27
Type
Continuous light module
Voltage type
AC/DC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Electrical rating

Leakage current
0.003 A
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - min
24 V
Rated operational voltage (Ue) at AC - max
24 V
Rated operational voltage (Ue) at DC - min
24 V
Rated operational voltage (Ue) at DC - max
24 V
