View larger

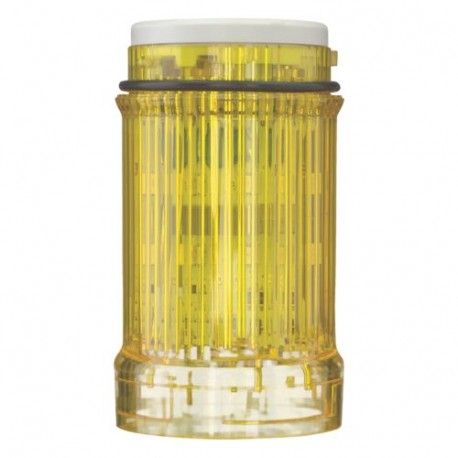

SL4-L230-Y 171329 Y7-171329 EATON ELECTRIC LED continuously light , yellow 230V
SL4-L230-Y
171329
Y7-171329
EATON - MOELLER
1 Pcs.
Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller LED continuously light (SL4-L230-Y) acts as a steady optical signal generator implemented in industrial control panels and machinery towers to display continuous operational readiness or normal status. These indicator modules help maintain clear operator visibility across automated production cells.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Function (EF000030): Continuous light
- Repetition frequency settable (EF018169): No
- Colour (EF000007): Yellow
- Outer diameter (EF000015): 43 mm
- Operating voltage AC 50 Hz (EF008206): 230 V
- Operating voltage AC 60 Hz (EF008207): 230 V
- Operating voltage DC (EF008208): 0 V
- Voltage type (EF000187): AC
- Lamp type (EF002423): LED
- Housing colour (EF000136): Black
- Degree of protection (IP) (EF005474): IP66
- Degree of protection (NEMA) (EF011959): 4X
More info
▲General specifications
UL 508
UL
CSA-C22.2 No. 14-10
CE
CSA Class No.: NKCR7
UL File No.: E29184
UL Category Control No.: NKCR
IEC/EN 60947-5-1
UL report applies to both US and Canada
IEC/EN 60529
Certified by UL for use in Canada
Features & Functions
Max. 5 (with standard base)
General
IP66
Enclosure: Polycarbonate (PC)
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
