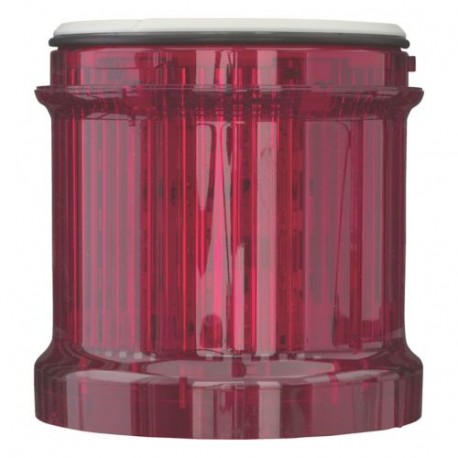

EATON - MOELLER SL7-L230-R SL7-L230-R 171475 Y7-171475 EATON ELECTRIC LED continuously light , red 230V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL7-L230-R 171475 Y7-171475 EATON ELECTRIC LED continuously light , red 230V

SL7-L230-R

171475

Y7-171475

EATON - MOELLER

1 Pcs.

LED continuously light , red 230V SL7-L230-R Eaton Moeller® series SL7 Continuous light module; red; LED;230 V Continuous light module, Color Red, Product range: SL signal towers, Degree of Protection: IP66, Protection type UL: Type 4, 4X, 13, Rated operational voltage: Ue= 230/240 V AC, Type of light: Continuous light, Light elements: LED, Mounting position: As required, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1

Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Delivering bright steady illumination, the Eaton Moeller SL7-L230-R continuous light module serves as a reliable status indicator for industrial automation equipment. Signal towers use continuous lighting modules to display normal operating conditions, active processes, or system readiness to operators on the floor. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Function (EF000030): Continuous light
  • Repetition frequency settable (EF018169): No
  • Colour (EF000007): Red
  • Outer diameter (EF000015): 73 mm
  • Operating voltage AC 50 Hz (EF008206): 230 V
  • Operating voltage AC 60 Hz (EF008207): 230 V
  • Operating voltage DC (EF008208): 0 V
  • Voltage type (EF000187): AC
  • Lamp type (EF002423): LED
  • Housing colour (EF000136): Black
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 4

More info

▲

General specifications

Product Name
Eaton Moeller® series SL7 Continuous light module
Catalog Number
171475
Model Code
SL7-L230-R
EAN
4015081679584
Product Length/Depth
73 mm
Product Height
73 mm
Product Width
73 mm
Product Weight
0.082 kg
Certifications
UL report applies to both US and Canada
UL File No.: E29184
CSA-C22.2 No. 94-91
CE
UL
CSA Class No.: NKCR7
CSA-C22.2 No. 14-10
IEC/EN 60529
UL 508
Certified by UL for use in Canada
IEC/EN 60947-5-1
UL Category Control No.: NKCR

Features & Functions

Color
Red
Enclosure color
Black
Functions
Continuous light
Light modules
LED
Number of modules
Max. 5 (with standard base)
Max. 10 (with base for mounting on both sides)

General

Connection to SmartWire-DT
No
Current consumption
0.027 - 0.028 A, at 230/240 V AC
Degree of protection
NEMA 4
IP66
Lifespan, electrical
100,000 h
Light type
Continuous light
Material
Cap: Polycarbonate (PC)
Enclosure: Polycarbonate (PC)
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Type
Continuous light module
Voltage type
AC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Electrical rating

Leakage current
0.003 A
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - min
230 V
Rated operational voltage (Ue) at AC - max
240 V
Rated operational voltage (Ue) at DC - min
0 V
Rated operational voltage (Ue) at DC - max
0 V
