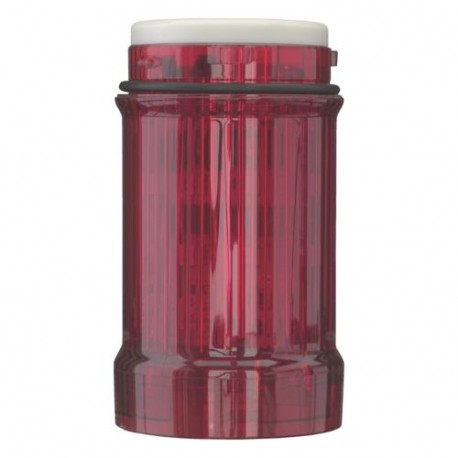

SL4-L230-R 171327 Y7-171327 EATON ELECTRIC LED continuously light , red 230V
SL4-L230-R
171327
Y7-171327
EATON - MOELLER
1 Pcs.
Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller LED continuously light , red 230V is deployed as a stack light component to signal continuous operational statuses on factory floor equipment. Such modules offer steady visual feedback to personnel monitoring complex automated production lines.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Function (EF000030): Continuous light
- Repetition frequency settable (EF018169): No
- Colour (EF000007): Red
- Outer diameter (EF000015): 43 mm
- Operating voltage AC 50 Hz (EF008206): 230 V
- Operating voltage AC 60 Hz (EF008207): 230 V
- Operating voltage DC (EF008208): 0 V
- Voltage type (EF000187): AC
- Lamp type (EF002423): LED
- Housing colour (EF000136): Black
- Degree of protection (IP) (EF005474): IP66
- Degree of protection (NEMA) (EF011959): 4
More info
▲General specifications
CSA-C22.2 No. 94-91
UL report applies to both US and Canada
UL Category Control No.: NKCR
Certified by UL for use in Canada
UL
UL File No.: E29184
CSA Class No.: NKCR7
IEC/EN 60529
IEC/EN 60947-5-1
CSA-C22.2 No. 14-10
UL 508
Features & Functions
Max. 10 (with base for mounting on both sides)
General
NEMA 4
Enclosure: Polycarbonate (PC)
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
