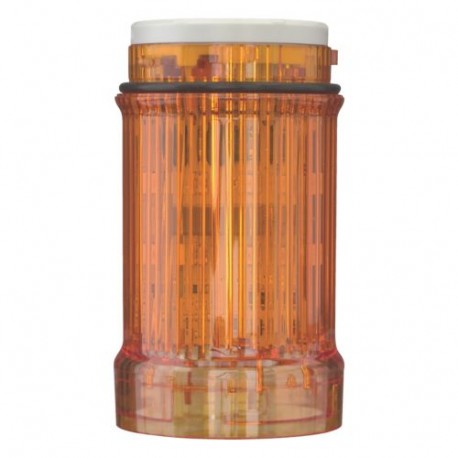

EATON - MOELLER SL4-L120-A SL4-L120-A 171324 Y7-171324 EATON ELECTRIC LED continuously light , orange 120V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL4-L120-A 171324 Y7-171324 EATON ELECTRIC LED continuously light , orange 120V

SL4-L120-A

171324

Y7-171324

EATON - MOELLER

1 Pcs.

LED continuously light , orange 120V SL4-L120-A Eaton Moeller® series SL4 Continuous light module; orange; LED;120 V Continuous light module, Color Orange, Product range: SL signal towers, Degree of Protection: IP66, Protection type UL: Type 4, 4X, 13, Rated operational voltage: Ue= 110/120 V AC, Type of light: Continuous light, Light elements: LED, Mounting position: As required, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1

Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller SL4-L120-A LED continuously light, orange 120V provides steady optical status indication for automated machinery and industrial control cabinets. Continuous light modules are standard components used in signal towers to display routine operating states or cautionary conditions.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Function (EF000030): Continuous light
  • Repetition frequency settable (EF018169): No
  • Colour (EF000007): Orange
  • Outer diameter (EF000015): 43 mm
  • Operating voltage AC 50 Hz (EF008206): 110 V
  • Operating voltage AC 60 Hz (EF008207): 110 V
  • Operating voltage DC (EF008208): 0 V
  • Voltage type (EF000187): AC
  • Lamp type (EF002423): LED
  • Housing colour (EF000136): Black
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 13

More info

▲

General specifications

Product Name
Eaton Moeller® series SL4 Continuous light module
Catalog Number
171324
Model Code
SL4-L120-A
EAN
4015081678631
Product Length/Depth
43 mm
Product Height
75 mm
Product Width
43 mm
Product Weight
0.043 kg
Certifications
UL File No.: E29184
UL 508
IEC/EN 60947-5-1
UL
CE
CSA-C22.2 No. 94-91
IEC/EN 60529
UL Category Control No.: NKCR
CSA Class No.: NKCR7
CSA-C22.2 No. 14-10
UL report applies to both US and Canada
Certified by UL for use in Canada

Features & Functions

Color
Orange
Enclosure color
Black
Functions
Continuous light
Light modules
LED
Number of modules
Max. 10 (with base for mounting on both sides)
Max. 5 (with standard base)

General

Connection to SmartWire-DT
No
Current consumption
0.03 A, at 110/120 V AC
Degree of protection
NEMA 13
IP66
Lifespan, electrical
100,000 h
Light type
Continuous light
Material
Enclosure: Polycarbonate (PC)
Cap: Polycarbonate (PC)
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27
Type
Continuous light module
Voltage type
AC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Electrical rating

Leakage current
0.003 A
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - min
110 V
Rated operational voltage (Ue) at AC - max
120 V
Rated operational voltage (Ue) at DC - min
0 V
Rated operational voltage (Ue) at DC - max
0 V
