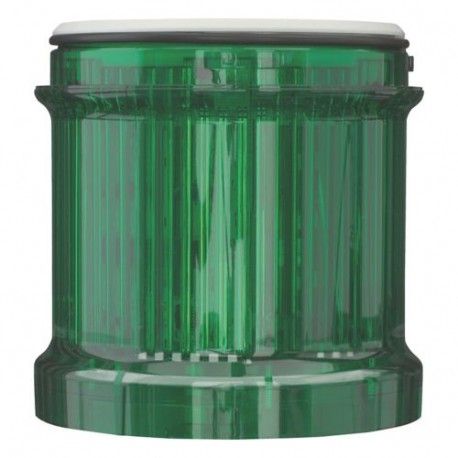

EATON - MOELLER SL7-L24-G-HP SL7-L24-G-HP 171428 Y7-171428 EATON ELECTRIC LED continuously light , green 24V, H.P. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL7-L24-G-HP 171428 Y7-171428 EATON ELECTRIC LED continuously light , green 24V, H.P.

SL7-L24-G-HP

171428

Y7-171428

EATON - MOELLER

1 Pcs.

LED continuously light , green 24V, H.P. SL7-L24-G-HP Eaton Moeller® series SL7 Continuous light module; green;high power LED;24 V Continuous light module, Color green, High-performance LED for maximum signaling effect, Product range: SL signal towers, Degree of Protection: IP66, Protection type UL: Type 4, 4X, 13, Rated operational voltage: Ue= 24 V AC/DC, Type of light: Continuous light, Light elements: High Performance LED, Mounting position: As required, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1

Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller SL7-L24-G-HP is a high-performance continuous LED light module engineered for clear status indication in heavy-duty industrial environments. Tower light elements provide essential visual telemetry for machinery, helping operators monitor complex automated tasks safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Function (EF000030): Continuous light
  • Repetition frequency settable (EF018169): No
  • Colour (EF000007): Green
  • Outer diameter (EF000015): 73 mm
  • Operating voltage AC 50 Hz (EF008206): 18 V
  • Operating voltage AC 60 Hz (EF008207): 18 V
  • Operating voltage DC (EF008208): 18 V
  • Voltage type (EF000187): AC/DC
  • Lamp type (EF002423): LED
  • Housing colour (EF000136): Black
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 4X

More info

▲

General specifications

Product Name
Eaton Moeller® series SL7 Continuous light module
Catalog Number
171428
Model Code
SL7-L24-G-HP
EAN
4015081677603
Product Length/Depth
73 mm
Product Height
73 mm
Product Width
73 mm
Product Weight
0.088 kg
Certifications
Certified by UL for use in Canada
CSA-C22.2 No. 94-91
UL
CSA-C22.2 No. 14-10
UL 508
UL report applies to both US and Canada
CSA Class No.: NKCR7
CE
UL File No.: E29184
IEC/EN 60947-5-1
UL Category Control No.: NKCR
IEC/EN 60529

Features & Functions

Color
Green
Enclosure color
Black
Functions
Continuous light
Light modules
High Performance LED
Number of modules
Max. 5 (with standard base)
Max. 10 (with base for mounting on both sides)

General

Connection to SmartWire-DT
No
Current consumption
50 mA at 24 V AC/DC
Degree of protection
IP66
NEMA 4X
Lifespan, electrical
50,000 h
Light type
Continuous light
Material
Cap: Polycarbonate (PC)
Enclosure: Polycarbonate (PC)
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27
Type
Voltage type
AC/DC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Electrical rating

Leakage current
0.003 A
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - min
18 V
Rated operational voltage (Ue) at AC - max
26 V
Rated operational voltage (Ue) at DC - min
18 V
Rated operational voltage (Ue) at DC - max
30 V
