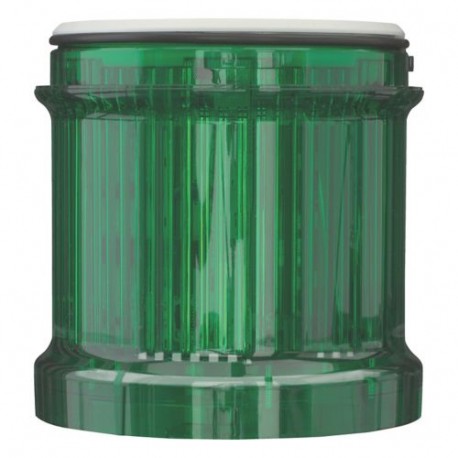

EATON - MOELLER SL7-L120-G SL7-L120-G 171468 Y7-171468 EATON ELECTRIC LED continuously light , green 120V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL7-L120-G 171468 Y7-171468 EATON ELECTRIC LED continuously light , green 120V

SL7-L120-G

171468

Y7-171468

EATON - MOELLER

1 Pcs.

LED continuously light , green 120V SL7-L120-G Eaton Moeller® series SL7 Continuous light module; green; LED;120 V Continuous light module, Color green, Product range: SL signal towers, Degree of Protection: IP66, Protection type UL: Type 4, 4X, 13, Rated operational voltage: Ue= 110/120 V AC, Type of light: Continuous light, Light elements: LED, Mounting position: As required, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1

Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller SL7-L120-G LED continuously light , green 120V acts as a steady optical signal element in modular signal tower assemblies for industrial machinery. These visual indicators are integrated into automated systems to signal normal operating conditions, safety states, or process readiness to personnel. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Function (EF000030): Continuous light
  • Repetition frequency settable (EF018169): No
  • Colour (EF000007): Green
  • Outer diameter (EF000015): 73 mm
  • Operating voltage AC 50 Hz (EF008206): 110 V
  • Operating voltage AC 60 Hz (EF008207): 110 V
  • Operating voltage DC (EF008208): 0 V
  • Voltage type (EF000187): AC
  • Lamp type (EF002423): LED
  • Housing colour (EF000136): Black
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 13

More info

▲

General specifications

Product Name
Eaton Moeller® series SL7 Continuous light module
Catalog Number
171468
Model Code
SL7-L120-G
EAN
4015081677955
Product Length/Depth
73 mm
Product Height
73 mm
Product Width
73 mm
Product Weight
0.082 kg
Certifications
UL report applies to both US and Canada
CSA-C22.2 No. 94-91
UL
UL 508
CSA-C22.2 No. 14-10
IEC/EN 60529
IEC/EN 60947-5-1
UL Category Control No.: NKCR
UL File No.: E29184
Certified by UL for use in Canada
CSA Class No.: NKCR7
CE

Features & Functions

Color
Green
Enclosure color
Black
Functions
Continuous light
Light modules
LED
Number of modules
Max. 10 (with base for mounting on both sides)
Max. 5 (with standard base)

General

Connection to SmartWire-DT
No
Current consumption
0.028 - 0.031 A, at 110/120 V AC
Degree of protection
IP66
NEMA 13
Lifespan, electrical
100,000 h
Light type
Continuous light
Material
Enclosure: Polycarbonate (PC)
Cap: Polycarbonate (PC)
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27
Type
Continuous light module
Voltage type
AC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Electrical rating

Leakage current
0.003 A
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - min
110 V
Rated operational voltage (Ue) at AC - max
120 V
Rated operational voltage (Ue) at DC - min
0 V
Rated operational voltage (Ue) at DC - max
0 V
