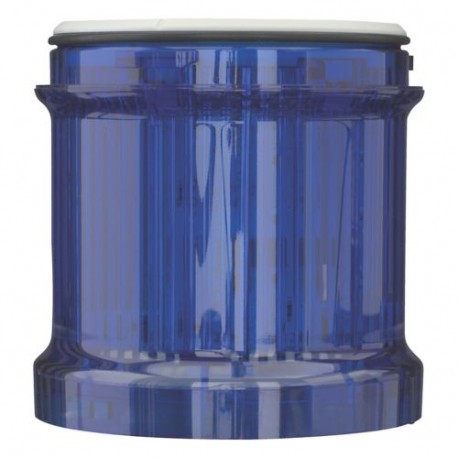

EATON - MOELLER SL7-L24-B-HP SL7-L24-B-HP 171427 Y7-171427 EATON ELECTRIC LED continuously light , blue 24V, H.P. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL7-L24-B-HP 171427 Y7-171427 EATON ELECTRIC LED continuously light , blue 24V, H.P.

SL7-L24-B-HP

171427

Y7-171427

EATON - MOELLER

1 Pcs.

LED continuously light , blue 24V, H.P. SL7-L24-B-HP Eaton Moeller® series SL7 Continuous light module; blue;high power LED;24 V Continuous light module, Color Blue, High-performance LED for maximum signaling effect, Product range: SL signal towers, Degree of Protection: IP66, Protection type UL: Type 4, 4X, 13, Rated operational voltage: Ue= 24 V AC/DC, Type of light: Continuous light, Light elements: High Performance LED, Mounting position: As required, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1

Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series SL7 Continuous light module
Catalog Number
171427
Model Code
SL7-L24-B-HP
EAN
4015081677597
Product Length/Depth
73 mm
Product Height
73 mm
Product Width
73 mm
Product Weight
0.088 kg
Certifications
Certified by UL for use in Canada
CSA Class No.: NKCR7
CSA-C22.2 No. 94-91
UL report applies to both US and Canada
IEC/EN 60947-5-1
CE
UL Category Control No.: NKCR
IEC/EN 60529
UL
UL 508
UL File No.: E29184
CSA-C22.2 No. 14-10

Features & Functions

Color
Blue
Enclosure color
Black
Functions
Continuous light
Light modules
High Performance LED
Number of modules
Max. 10 (with base for mounting on both sides)
Max. 5 (with standard base)

General

Connection to SmartWire-DT
No
Current consumption
0.17 - 0.2 A, at 24 V AC/DC
Degree of protection
IP66
NEMA 13
Lifespan, electrical
50,000 h
Light type
Continuous light
Material
Enclosure: Polycarbonate (PC)
Cap: Polycarbonate (PC)
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27
Type
Voltage type
AC/DC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Electrical rating

Leakage current
0.003 A
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - min
18 V
Rated operational voltage (Ue) at AC - max
26 V
Rated operational voltage (Ue) at DC - min
18 V
Rated operational voltage (Ue) at DC - max
30 V

ETIM for 171427 Low-voltage industrial controls and switchgear (EC000232)
Feature Name Feature Value
Function (EF000030) Continuous light
Repetition frequency settable (EF018169) No
Colour (EF000007) Blue
Outer diameter (EF000015) 73 mm
Operating voltage AC 50 Hz (EF008206) 18 V
Operating voltage AC 60 Hz (EF008207) 18 V
Operating voltage DC (EF008208) 18 V
Voltage type (EF000187) AC/DC
Lamp type (EF002423) LED
Housing colour (EF000136) Black
Degree of protection (IP) (EF005474) IP66
Degree of protection (NEMA) (EF011959) 13
