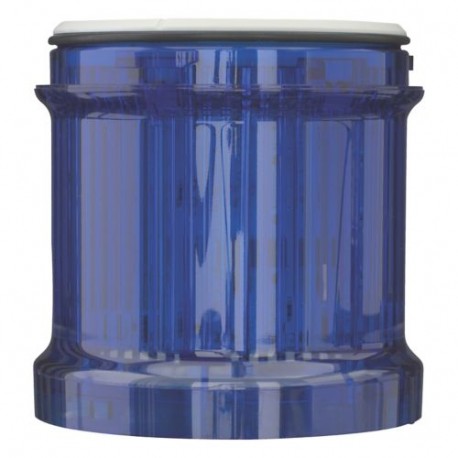

EATON - MOELLER SL7-L120-B SL7-L120-B 171467 Y7-171467 EATON ELECTRIC LED continuously light , blue 120V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL7-L120-B 171467 Y7-171467 EATON ELECTRIC LED continuously light , blue 120V

SL7-L120-B

171467

Y7-171467

EATON - MOELLER

1 Pcs.

LED continuously light , blue 120V SL7-L120-B Eaton Moeller® series SL7 Continuous light module; blue; LED;120 V Continuous light module, Color Blue, Product range: SL signal towers, Degree of Protection: IP66, Protection type UL: Type 4, 4X, 13, Rated operational voltage: Ue= 110/120 V AC, Type of light: Continuous light, Light elements: LED, Mounting position: As required, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1

Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series SL7 Continuous light module
Catalog Number
171467
Model Code
SL7-L120-B
EAN
4015081677948
Product Length/Depth
73 mm
Product Height
73 mm
Product Width
73 mm
Product Weight
0.082 kg
Compliances
CE Marked
Certifications
CSA Certified
UL Listed
UL 508
cULus Listed
CSA Std. C22.2 No. 14-10
UL Listed file E29184
CSA Class No. NKCR7
CSA Std. C22.2 No. 94-91
IEC Rated
UL
UL File No.: E29184
CSA Class No.: NKCR7
CSA-C22.2 No. 14-10
Certified by UL for use in Canada
IEC/EN 60529
CSA-C22.2 No. 94-91
CE
UL report applies to both US and Canada
IEC/EN 60947-5-1
UL Category Control No.: NKCR
Catalog Notes
0

Features & Functions

Color
Blue
Enclosure color
Black
Functions
Continuous light
Light modules
LED
Number of modules
Max. 5 (with standard base)
Max. 10 (with base for mounting on both sides)

General

Connection to SmartWire-DT
No
Current consumption
0.028 - 0.031 A, at 110/120 V AC
Degree of protection
NEMA 4X
IP66
Lifespan, electrical
100,000 h
Light type
Continuous light
Material
Cap: Polycarbonate (PC)
Enclosure: Polycarbonate (PC)
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Type
Continuous light module
Voltage type
AC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Electrical rating

Leakage current
0.003 A
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - min
110 V
Rated operational voltage (Ue) at AC - max
120 V
Rated operational voltage (Ue) at DC - min
0 V
Rated operational voltage (Ue) at DC - max
0 V

ETIM for 171467 Low-voltage industrial controls and switchgear (EC000232)
Feature Name Feature Value
Function (EF000030) Continuous light
Repetition frequency settable (EF018169) No
Colour (EF000007) Blue
Outer diameter (EF000015) 73 mm
Operating voltage AC 50 Hz (EF008206) 110 V
Operating voltage AC 60 Hz (EF008207) 110 V
Operating voltage DC (EF008208) 0 V
Voltage type (EF000187) AC
Lamp type (EF002423) LED
Housing colour (EF000136) Black
Degree of protection (IP) (EF005474) IP66
Degree of protection (NEMA) (EF011959) 4X
