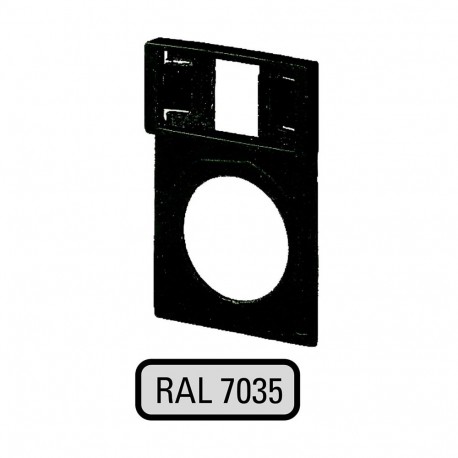

EATON - MOELLER Q25TGR-X Q25TGR-X 063257 Y7-63257 EATON ELECTRIC Label mount, light Gray View larger
Images are for illustrative purposes only. Please refer to data sheet for details

Q25TGR-X 063257 Y7-63257 EATON ELECTRIC Label mount, light Gray

Q25TGR-X

063257

Y7-63257

EATON - MOELLER

20 Pcs.

Label mount, light Gray Light Grey Indicator Label Eaton Moeller® series RMQ16 Label mount, light Gray For the perfect inscription of the RQM16 pushbuttons, there are label mounts in different colors as well as blank signs with standard texts as well as those also laser cut individually according to customer requirements.

Automation > Text plate holder for command devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Eaton Moeller Q25TGR-X label mount is an industrial hardware accessory utilized on control panels and operator consoles to neatly display identification tags or functional text near pushbuttons and switches. These mounts snap or fasten securely around panel cutouts to organize control stations and improve operator clarity in automated systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Width (EF000008): 25 mm
  • Height (EF000040): 38 mm
  • Hole diameter (EF000079): 16 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Colour (EF000007): Grey
  • Shape (EF000051): Rectangular

More info

▲

General specifications

Product Name
Eaton Moeller® series RMQ16 Accessory Label mount
Catalog Number
063257
Model Code
Q25TGR-X
EAN
4015080632573
Product Length/Depth
1 mm
Product Height
38 mm
Product Width
25 mm
Product Weight
0.003 kg
Certifications
UL/CSA certification not required

Features & Functions

Color
Gray
Functions
For additional marking of mounting locations in surface mounting enclosures or flush mounting panels in grid dimension 25 × 37.5 mm
RAL-number
7035
Shape
Rectangular

General

Opening diameter
16 mm
Product category
Accessories

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C

Communication

Connection to SmartWire-DT
No

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
