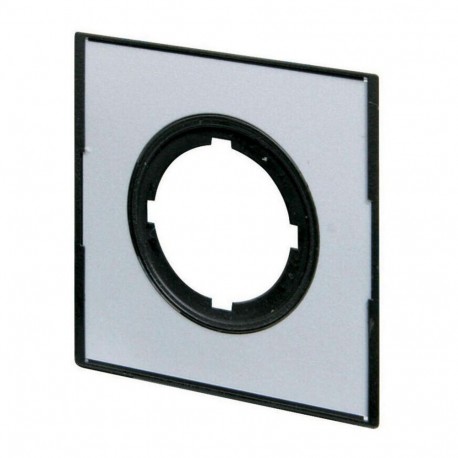

EATON - MOELLER M22-XCK-* M22-XCK-* 279436 Y7-279436 EATON ELECTRIC Label for 4-position switch, blank View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-XCK-* 279436 Y7-279436 EATON ELECTRIC Label for 4-position switch, blank

M22-XCK-*

279436

Y7-279436

EATON - MOELLER

1 Pcs.

Label for 4-position switch, blank M22-XCK-* Eaton Moeller® series M22 Label for 4-position switch, blank M22-XCK-* Label, Product range: Accessories, Single unit, Name: with customized inscription using the Label Editor → Data sheet, additional product information (links), For use with: Joystick, 4-way selector switch actuators, Connection to SmartWire-DT: no, Standards: IEC/EN 60947, VDE 0660, Mounting position: As required

Automation > Text plate for command devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22-XCK-* label for 4-position switch, blank is a designation component used in industrial control panels to clearly mark switch positions for operators. These labels mount onto control actuators and operator interfaces to provide permanent, legible identification of machine modes or circuit selections. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Colour (EF000007): Silver
  • Shape (EF000051): Square
  • Width (EF000008): 50 mm
  • Height (EF000040): 2 mm
  • Outer diameter (EF000015): 0 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Label for 4-position switch
Catalog Number
279436
Model Code
M22-XCK-*
Product Length/Depth
50 mm
Product Height
2 mm
Product Width
50 mm
Product Weight
0.004 kg
Certifications
IEC/EN 60947
VDE 0660
UL/CSA certification not required
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
