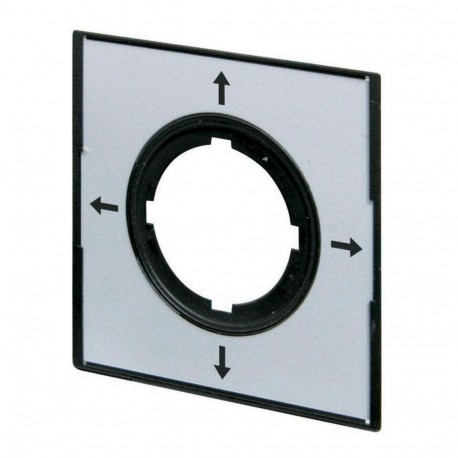

EATON - MOELLER M22-XCK1 M22-XCK1 279434 Y7-279434 EATON ELECTRIC Label for 4-position switch, blank View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-XCK1 279434 Y7-279434 EATON ELECTRIC Label for 4-position switch, blank

M22-XCK1

279434

Y7-279434

EATON - MOELLER

10 Pcs.

Label for 4-position switch, blank M22-XCK1 Eaton Moeller® series M22 Label for 4-position switch, blank M22-XCK1 Label, Product range: Accessories, Single unit, Name: 4 direction arrows, For use with: Joystick, 4-way selector switch actuators, Connection to SmartWire-DT: no, Standards: IEC/EN 60947, VDE 0660, Mounting position: As required

Automation > Text plate for command devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller label for 4-position switch gives clear directional indication around multi-position rotary control devices. These square markers assist operators in selecting precise operational pathways on complex machinery.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Imprint ISO symbols (EF006094): Symbol " arrow "
  • Colour (EF000007): Silver
  • Shape (EF000051): Square
  • Width (EF000008): 50 mm
  • Height (EF000040): 2 mm
  • Outer diameter (EF000015): 0 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Label for 4-position switch
Catalog Number
279434
Model Code
M22-XCK1
EAN
4015082794347
Product Length/Depth
50 mm
Product Height
2 mm
Product Width
50 mm
Product Weight
0.004 kg
Certifications
IEC 60947
EN 60947
VDE
IEC/EN 60947
VDE 0660
UL/CSA certification not required
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
