EATON - MOELLER M22-XCK3 M22-XCK3 290260 Y7-290260 EATON ELECTRIC Label, for 2 position switch, blank View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-XCK3 290260 Y7-290260 EATON ELECTRIC Label, for 2 position switch, blank

M22-XCK3

290260

Y7-290260

EATON - MOELLER

10 Pcs.

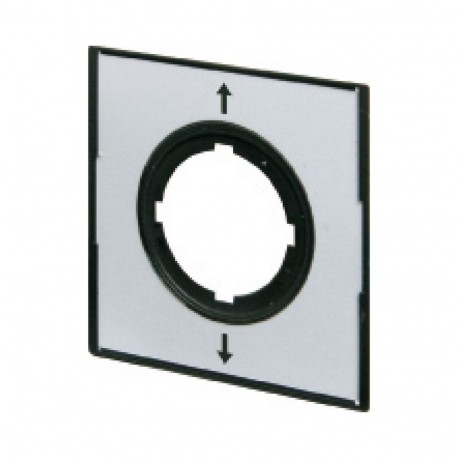

Label, for 2 position switch, blank M22-XCK3 Eaton Moeller® series M22 Label, for 2 position switch, blank Label, Product range: Accessories, Single unit, Name: 2 direction arrows, can be turned through 90°, For use with: Joystick 2 positions, Connection to SmartWire-DT: no, Standards: IEC/EN 60947, VDE 0660, Mounting position: As required

Automation > Text plate for command devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Label for 4-position switch
Catalog Number
290260
Model Code
M22-XCK3
EAN
4015082902605
Product Length/Depth
50 mm
Product Height
2 mm
Product Width
50 mm
Product Weight
0.004 kg
Certifications
UL/CSA certification not required
VDE 0660
IEC/EN 60947
DNV
GL
LR

Features & Functions

Color
Silver
Inscription
Other
2 direction arrows, can be turned through 90°
Language
Other
RAL-number
1004
Shape
Square

General

Degree of protection
IP66
Product Category
Accessories
Used with
Two-position joystick
M22-D4…
M22-DI4…
M22-WJ…
M22-WRJ…
M22S-WJ…
M22S-WRJ…

Ambient conditions, mechanical

Mounting position
As required

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Communication

Connection to SmartWire-DT
No

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 290260 Low-voltage industrial controls and switchgear (EC000624)
Feature Name Feature Value
Literal imprint (EF015918) Other
Language of the imprint (EF015922) Other
Imprint ISO symbols (EF006094) Symbol " arrow "
Colour (EF000007) Silver
Shape (EF000051) Square
Width (EF000008) 50 mm
Height (EF000040) 2 mm
Outer diameter (EF000015) 0 mm

Product Datasheet
