View larger
Images are for illustrative purposes only. Please refer to data sheet for details

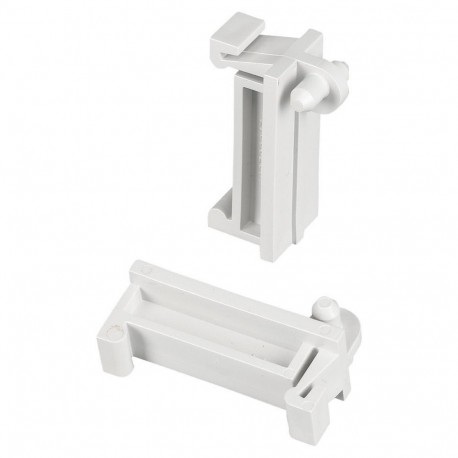

KT-5 275447 Y7-275447 EATON ELECTRIC Support for connecting KT-5, vertical
KT-5
275447
Y7-275447
EATON - MOELLER
1 Pcs.
Support for connecting KT-5, vertical
KT-5
Eaton xEnergy Basic LV systems Low voltage switchgear. KT-5 terminal support, vertical
For the insulated installation of KL terminal bars in service distribution boards
Automation > Component for installation (switchgear cabinet)
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Basic installation component
Catalog Number
275447
Model Code
KT-5
EAN
4015082754471
Product Length/Depth
50 mm
Product Height
130 mm
Product Width
90 mm
Product Weight
0.06 kg
Compliances
RoHS conform
Product specifications
Type
Additional equipment for BF flat distribution board
Accessory/spare part type
General
Used with
Terminal support bars
BF flat distribution board
Accessory consideration
BF flat distribution board
Accessory consideration
Color
Gray
Load capacity - max
0 kg
RAL-number
7035
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm
Material
Plastic
Model
Other
Mounting method
Floor standing distribution board
Surface mounting
Flush mounting
Surface mounting
Flush mounting
Functions
Additional equipment
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Suitable for enclosure building width (EF000326) | 0 mm |
| Suitable for enclosure building height (EF009583) | 0 mm |
| Suitable for enclosure building depth (EF000327) | 0 mm |
| Width (EF000008) | 90 mm |
| Height (EF000040) | 130 mm |
| Depth (EF000049) | 50 mm |
| Max. load capacity (EF000258) | 0 kg |
| Material (EF002169) | Plastic |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
