EATON - MOELLER KLV-60UPM-SF KLV-60UPM-SF 302419 Y7-302419 EATON ELECTRIC KLV-60UPM-SF View larger
Images are for illustrative purposes only. Please refer to data sheet for details

KLV-60UPM-SF 302419 Y7-302419 EATON ELECTRIC KLV-60UPM-SF

KLV-60UPM-SF

302419

Y7-302419

EATON - MOELLER

1 Pcs.

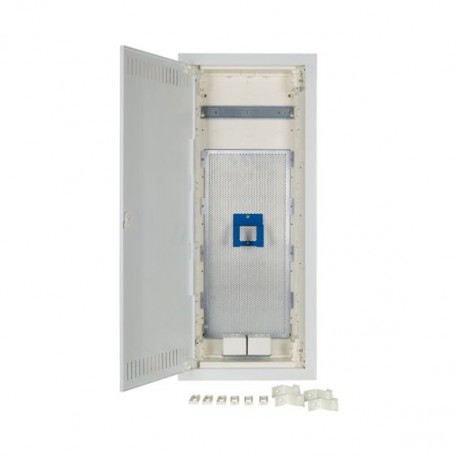

KLV-60UPM-SF Eaton xComfort KLV LV systems Final Distribution Boards. Compact distribution board-flush mounting, multimedia, 5-rows, super-flat sheet steel door KLV flush mounting media enclosures, plastic distribution board with sheet steel door with ventilation openings, marking slot in wall box, one-of-a-kind super-flat door frame design, rugged door cam lock, optionally replaceable with safety interlock, cable retainer for neat cable routing, comprehensive range of accessories, equipment supplied: enclosure, 1x mounting rail, microperforated mounting plate, 1x device holder, 2x single-way socket outlet with plug-in units and Euro2 adapter, spirit level for leveling, 3D adjustment element for mounting designed to adjust the mounting depth by up to 18 mm, cable retainer, nail lugs , installation instructions, special packaging designed to meet real-life application requirements. Standards: Approved for multi-media applications in GP universal enclosure in accordance with IEC/EN 60670-24 and IEC/EN 62208. Protection class II. To obtain protection class II, all devices installed must be of the fully insulated type.

Automation > Distributor for telecommunication
Compact Distribution Boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A wall-mounted distributor enclosure provides secure housing for electrical distribution equipment, modular terminal blocks, and automation cabling in industrial or residential settings. This Eaton Moeller KLV-60UPM-SF assembly ensures structured organization and protection for internal circuits.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Wall-mounted distributor
  • Mounting method (EF000003): Flush mounted
  • With connecting lugs (EF000398): No
  • Max. number of dual cores (EF003664): 12
  • 110-compatible (EF006673): No
  • LSA (EF007921): No
  • SID (EF009749): No
  • Material (EF002169): Steel plate/plastic
  • Degree of protection (IP) (EF005474): IP30
  • Colour (EF000007): White
  • Height (EF000040): 840 mm
  • Width (EF000008): 360 mm
  • Depth (EF000049): 100 mm
  • Number of mountable connection strips (EF000393): 12
  • DIN-compatible (EFDE0024): Yes
  • Compatible with Grade2TV according to XP-C 90-483 (EFFR0001): No

More info

▲

General specifications

Product Name
Eaton xComfort KLV multimedia distribution board
Catalog Number
302419
Model Code
KLV-60UPM-SF
EAN
9010238160927
Product Length/Depth
100 mm
Product Height
840 mm
Product Width
360 mm
Product Weight
6.97 kg
Compliances
RoHS conform
Certifications
IEC/EN 60670-24 (GP)
IEC/EN 62208

Product specifications

Special features
IP30Protection Class IIPlastic enclosure with sheet steel door, white (RAL 9016)Note: To obtain protection class II, all devices installed on the mounting plate must be of the fully insulated type.
Type
Basic deviceInstallation distribution boardsKLV multimedia
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
650 °C; meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2.6 Mechanical impact
IK05
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP30
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
Protection class 2, therefore not applicable.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 400 V AC
10.9.3 Impulse withstand voltage
4 kV
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
Fitted with:
Spirit level for leveling
Device support rails
Installation instructions
Nail lugs
Device holder
Microperforated mounting plate
Wall trough
Door/Frame
3D adjustment element for mounting designed to adjust the mounting depth by up to 18 mm
Cable retainer
2x single-way socket outlet
Used with
Basic device
Installation distribution boards
KLV multimedia
Cable entry postion
Cable entries on top and bottom, side, back plate
Heat diss. ambient 35°C delta T:20°C flush mount individ. encl. top(IEC 60890)
28 W
Heat diss. ambient 35°C delta T:35°C flush mount individ. encl. top(IEC 60890)
58 W
Cover/door color
White
Ambient operating temperature details
-5 °C - 40 °C
Application
Indoor
Voltage rating at AC
230 V AC
Color
White
Traffic white (RAL 9016)
Number of rows
5
Frequency rating of contacts
50 Hz
Module rack type
Media mounting plate
Degree of protection
IP30
Other
IK05
Number of module space units per row
12
Protection class
II (totally insulated)
Protective shrouding material
Without shroud for protection against accidental contact
Functions
Basic device
Material
Steel plate/plastic
Polystyren (plastic)
Sheet steel, powder-coated
Mounting method
DIN-compatible
Flush mounted (plaster)
DIN-rail
Flush mounting
Number of cores (dual) - max
12
Number of mountable connection strips
12
Model
Wall-mounted distributor
Mounting dimension
Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
