EATON - MOELLER M22-T-DD M22-T-DD 216396 Y7-216396 EATON ELECTRIC Key-protection diaphragm, for double actuator pushbutton View larger
Images are for illustrative purposes only. Please refer to data sheet for details

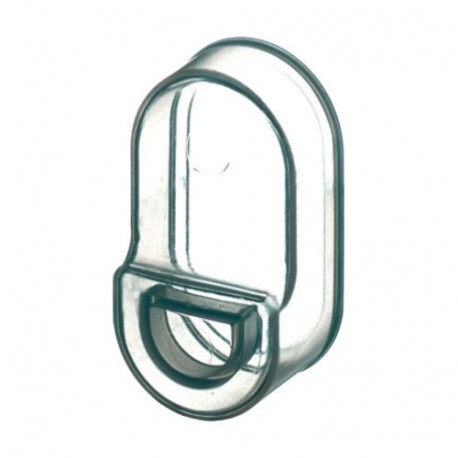

M22-T-DD 216396 Y7-216396 EATON ELECTRIC Key-protection diaphragm, for double actuator pushbutton

M22-T-DD

216396

Y7-216396

EATON - MOELLER

1 Pcs.

Key-protection diaphragm, for double actuator pushbutton M22-T-DD Eaton Moeller® series M22 Double actuator pushbutton Double actuator pushbutton, For use with: M22(N/O)-DDL..., transparent version for harsh environmental conditions and application in the food industry, Do not use in conjunction with M22S-ST legend plate mount, since degree of protection cannot be guaranteed, additional protection for double actuator pushbuttons, Silicone

Automation > Protective cover for command devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Double actuator pushbutton
Catalog Number
216396
Model Code
M22-T-DD
EAN
4015082163969
Product Length/Depth
33 mm
Product Height
23 mm
Product Width
58 mm
Product Weight
0.008 kg
Certifications
CE

Features & Functions

Color
Colorless
Features
Transparent
Material
Silicone
Shape
Round

General

Degree of protection
NEMA 13
NEMA 12
NEMA 3R
NEMA 4X
Model
Other
Protection
Additional protection for double actuator pushbuttons
Used with
Double actuator pushbuttons

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Communication

Connection to SmartWire-DT
No

Contacts

Force for positive opening - min
0 N

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 216396 Low-voltage industrial controls and switchgear (EC002040)
Feature Name Feature Value
Colour (EF000007) Colourless
Transparent (EF006243) Yes
Shape (EF000051) Round
Model (EF000010) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
