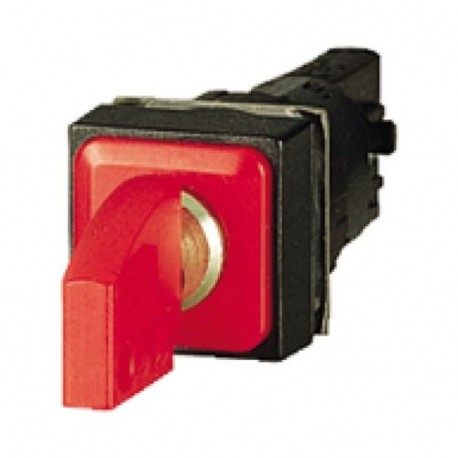

Q18S3R-RT 046838 Y7-46838 EATON ELECTRIC Key-operated actuator, 3 positions, red, maintained
Q18S3R-RT
046838
Y7-46838
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for compact control layouts, this Eaton Moeller Q18S3R-RT 046838 Y7-46838 EATON ELECTRIC Key-operated actuator, 3 positions, red, maintained provides secure three-position switching through a removable key mechanism. Such actuators are routinely placed on industrial equipment to regulate multi-step processes while preventing unauthorized operation. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 3
- Type of control element (EF006976): Key
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): Red
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA) (EF011959): 1
More info
▲General specifications
UL
CSA File No.: 46552
IEC/EN 60947
CSA Class No.: 3211-03
UL File No.: E29184
CSA
IEC/EN 60947-5
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
CE
Features & Functions
General
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Actuator
Switching function latching
Key withdrawable in position 0
Key withdrawable in position 2
