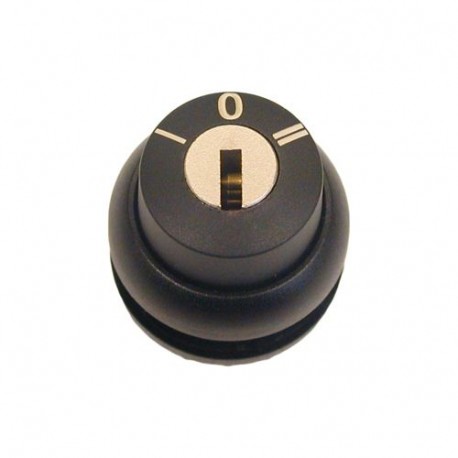

M22S-WS3-MS* 216897 Y7-216897 EATON ELECTRIC Key-operated actuator, 3 positions, momentary, closure accordin..
M22S-WS3-MS*
216897
Y7-216897
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller key-operated actuator, 3 positions, momentary, closure accordin, designated as M22S-WS3-MS*, provides multi-position control restricted by a physical key mechanism. Industrial facilities use key-operated switches to maintain security and prevent unauthorized personnel from triggering specific machine operations or changing control modes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 3
- Type of control element (EF006976): Key
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): Black
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
UL 508
IEC/EN 60947-5
UL
CSA-C22.2 No. 14-05
CSA
CSA Class No.: 3211-03
VDE 0660
CE
CSA-C22.2 No. 94-91
UL File No.: E29184
IEC/EN 60947
UL Category Control No.: NKCR
DNV
GL
LR
Features & Functions
Classical
Front ring
General
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
With SWD-RMQ connections
Actuator
Momentary
Spring-return
