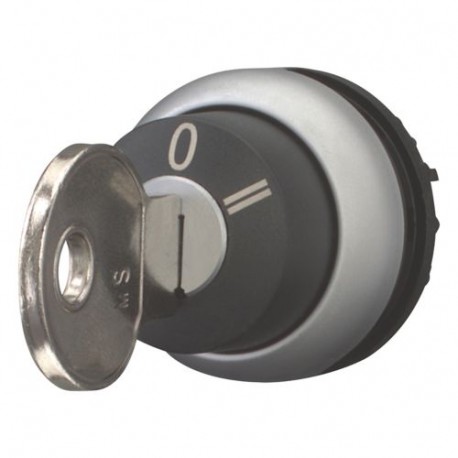

M22-WS3-MS* 216896 Y7-216896 EATON ELECTRIC Key-operated actuator, 3 positions, momentary, closure according..
M22-WS3-MS*
216896
Y7-216896
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A key-operated actuator provides secure access management for industrial automation systems, preventing unauthorized adjustments to plant equipment. Panel builders install these switches to ensure strict procedural compliance during operation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 3
- Type of control element (EF006976): Key
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): Black
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Titanium
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
IEC/EN 60947
UL File No.: E29184
CE
CSA
IEC/EN 60947-5
CSA File No.: 012528
CSA-C22.2 No. 94-91
UL
UL Category Control No.: NKCR
CSA Class No.: 3211-03
UL 508
VDE 0660
Features & Functions
Plunger bridge for the middle contact
General
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Communication
With SWD-RMQ connections
Actuator
Momentary
Key withdrawable in position 0
