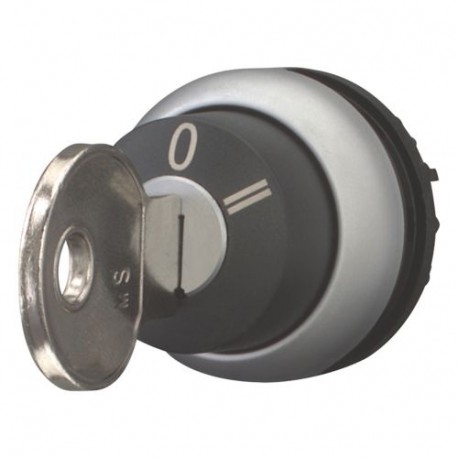

EATON - MOELLER M22-WRS3-A* M22-WRS3-A* 229094 Y7-229094 EATON ELECTRIC Key-operated actuator, 3 positions, maintained, type according t.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WRS3-A* 229094 Y7-229094 EATON ELECTRIC Key-operated actuator, 3 positions, maintained, type according t..

M22-WRS3-A*

229094

Y7-229094

EATON - MOELLER

1 Pcs.

Key-operated actuator, 3 positions, maintained, type according to data M22-WRS3-A* Eaton Moeller® series M22 Key-operated actuator, maintained, 3 positions: Key withdrawable: Selectable, Bezel: titanium Key-operated actuator, Product range: RMQ-Titan, Single unit, Design: Key operated, maintained, Not suitable for master key systems, 3 positions, Selectable, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Key withdraw convertible with coding adapters M22-XC-..., with plunger bridge for the middle contact, With 1 key, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller key-operated actuator permits authorized personnel to control machine operations, system cycles, or electrical modes via a secure physical key interface on control enclosures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 3
  • Type of control element (EF006976): Key
  • Suitable for lighting (EF001142): No
  • Colour control element (EF007167): Black
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Key-operated actuator
Catalog Number
229094
Model Code
M22-WRS3-A*
Product Length/Depth
70 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.031 kg
Certifications
CE
CSA
UL
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
IEC/EN 60947-5
UL 508
IEC/EN 60947
VDE 0660
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
UL File No.: E29184
CSA File No.: 012528
DNV
GL
LR

Product Datasheet
