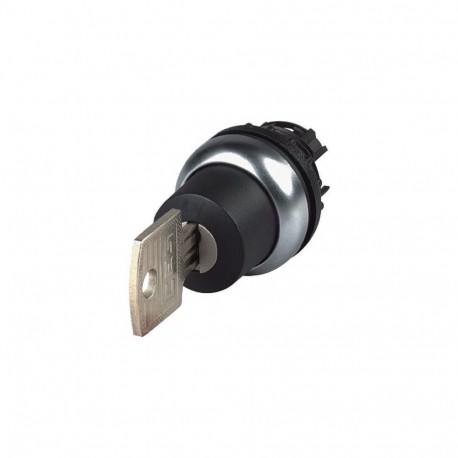

EATON - MOELLER M22-WRS3-SA(*)-* M22-WRS3-SA(*)-* 216905 Y7-216905 EATON ELECTRIC Key-operated actuator, 3 positions, maintained, type accord.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WRS3-SA(*)-* 216905 Y7-216905 EATON ELECTRIC Key-operated actuator, 3 positions, maintained, type accord..

M22-WRS3-SA(*)-*

216905

Y7-216905

EATON - MOELLER

1 Pcs.

Key-operated actuator, 3 positions, maintained, type according to data M22-WRS3-SA(*)-* Key-operated actuator, maintained, 3 positions 0, Bezel: titanium, Suitable for master key systems Key-operated actuator, Product range: RMQ-Titan, Single unit, Design: Key operated, maintained, Suitable for master key systems, 3 positions, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, with two keys, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Key-operated actuator, maintained, 3 positions 0, Bezel: titanium, Suitable for master key systems
Key-operated actuator, Product range: RMQ-Titan, Single unit, Design: Key operated, maintained, Suitable for master key systems, 3 positions, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, with two keys, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66

General specifications
Product name
Eaton Moeller® series M22 Key-operated actuator
Part no.
M22-WRS3-SA(*)-*
Product Length/Depth
70 millimetre
Product height
30 millimetre
Product width
30 millimetre
Product weight
0.034 kilogram
Certifications
UL
CSA File No.: 012528
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR
IEC/EN 60947-5
UL File No.: E29184
VDE 0660
CE
UL 508
CSA-C22.2 No. 94-91
CSA
IEC/EN 60947
GL
LR
DNV
Product Tradename
M22
Product Type
Key-operated actuator
Product Sub Type
None
Features & Functions
Bezel color
Titanium
Bezel material
Plastic
Design
Key operated
Classical
Fitted with:
Front ring
General information
Accessories
2 keys included with supplied equipment.
Degree of protection
IP66
NEMA 4X, 13
Degree of protection (front side)
IP66
Lifespan, mechanical
100,000 Operations
Opening diameter
22.5 mm
Operating frequency
100 Operations/h
Operating torque
0.5 N·m
Product category
RMQ-Titan
Size
Front diameter: 29.7 mm
Suitable for
Master key systems
Switching angle
60 °
Type
Key-operated button
Ambient conditions, mechanical
Mounting position
As required
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Communication
Connection to SmartWire-DT
Yes
With SWD-RMQ connections
Actuator
Actuator color
Black
Actuator function
Maintained
Key withdrawable in position 0
Switching function latching
Actuator type
Key
Number of switch positions
3
Contacts
Force for positive opening - min
0 N
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Technical data ETIM 9.0

Low-voltage industrial components (EG000017) / Front element for selector switch (EC000222)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Front element for selector switches (ecl@ss13-27-37-12-13 [AKF031019])
Number of switch positions
3
Type of control element
Key
Suitable for illumination
No
Colour control element
Black
Colour indicator light cap
Other
Construction type lens
Round
Hole diameter
22.5 mm
Width opening
0 mm
Height opening
0 mm
Switching function latching
Yes
Spring-return
No
With front ring
Yes
Material front ring
Plastic
Colour front ring
Titanium
Degree of protection (IP), front side
IP66
Degree of protection (NEMA)
4X, 13

ETIM for 216905 Low-voltage industrial controls and switchgear (EC000222)
Feature Name Feature Value
Number of switch positions (EF000231) 3
Type of control element (EF006976) Key
Suitable for lighting (EF001142) No
Colour control element (EF007167) Black
Colour indicator light cap (EF007165) Other
Construction type lens (EF006253) Round
Hole diameter (EF000079) 22.5 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Switching function latching (EF007447) Yes
Spring-return (EF001407) No
With front ring (EF006014) Yes
Material front ring (EF005972) Plastic
Colour front ring (EF002429) Titanium
Degree of protection (IP), front side (EF003118) IP66
Degree of protection (NEMA) (EF011959) 4X, 13
