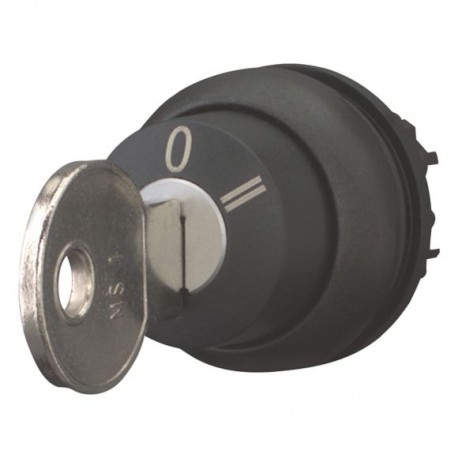

EATON - MOELLER M22S-WRS3 M22S-WRS3 216901 Y7-216901 EATON ELECTRIC Key-operated actuator, 3 positions, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-WRS3 216901 Y7-216901 EATON ELECTRIC Key-operated actuator, 3 positions, maintained

M22S-WRS3

216901

Y7-216901

EATON - MOELLER

5 Pcs.

Key-operated actuator, 3 positions, maintained M22S-WRS3 Eaton Moeller® series M22 Key-operated actuator, maintained, 3 positions, 0, II, Bezel: black Key-operated actuator, Product range: RMQ-Titan, Single unit, Design: Key operated, maintained, Not suitable for master key systems, 3 positions, II, Degree of Protection: IP66, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Key withdraw convertible with coding adapters M22-XC-..., with plunger bridge for the middle contact, With 1 key, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22S-WRS3 key-operated actuator provides secure, multi-position control for industrial machinery and electrical distribution panels. Panel builders integrate this maintained switch interface to govern operational modes while restricting access to authorized operators carrying matching keys.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 3
  • Type of control element (EF006976): Key
  • Suitable for lighting (EF001142): No
  • Colour control element (EF007167): Black
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Key-operated actuator
Catalog Number
216901
Model Code
M22S-WRS3
EAN
4015082169015
Product Length/Depth
70 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.031 kg
Compliances
Bureau Veritas
GoST-R
CE Marked
Certifications
CCC Marked
CSA Certified
Lloyd's Register Certified
UL Category Control No.: NKCR
CE
CSA-C22.2 No. 14-05
CSA
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
IEC/EN 60947-5
UL
VDE 0660
CSA File No.: 012528
IEC/EN 60947
UL 508
UL File No.: E29184
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
