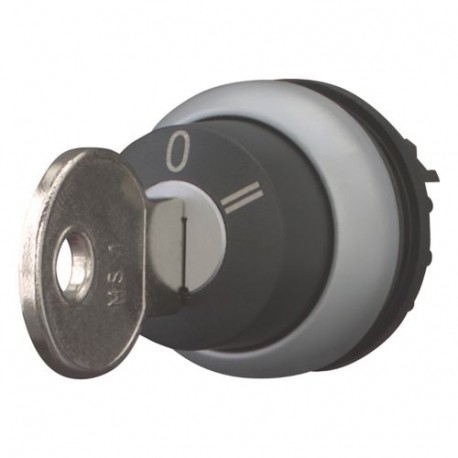

M22-WRS3 216900 Y7-216900 EATON ELECTRIC Key-operated actuator, 3 positions, maintained
M22-WRS3
216900
Y7-216900
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Key-operated actuators function as secure interface devices on industrial enclosures, ensuring that only authorized operators can alter machine control circuits. This Eaton Moeller M22-WRS3 unit delivers dependable multi-position switching for sensitive automation environments. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions: 3
- Type of control element: Key
- Suitable for lighting: No
- Colour control element: Black
- Construction type lens: Round
- Hole diameter: 22.5 mm
- Width opening: 0 mm
- Height opening: 0 mm
- Switching function latching: Yes
- Spring-return: No
- With front ring: Yes
- Material front ring: Plastic
- Colour front ring: Titanium
- Degree of protection (IP), front side: IP66
- Degree of protection (NEMA): 4X, 13
More info
▲General specifications
CSA Std. C22.2 No. 14-05
CSA Std. C22.2 No. 94-91
IEC 60947-5
UL 508
VDE
CSA-C22.2 No. 14-05
CSA Class No.: 3211-03
UL Category Control No.: NKCR
UL
UL File No.: E29184
IEC/EN 60947
CSA-C22.2 No. 94-91
VDE 0660
CSA File No.: 012528
CSA
CE
IEC/EN 60947-5
DNV
GL
LR
Features & Functions
Classical
Plunger bridge for the middle contact
General
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Communication
With SWD-RMQ connections
Actuator
Key withdrawable in position 2
Key withdrawable in position 0
Switching function latching
Key withdrawable in position 1
