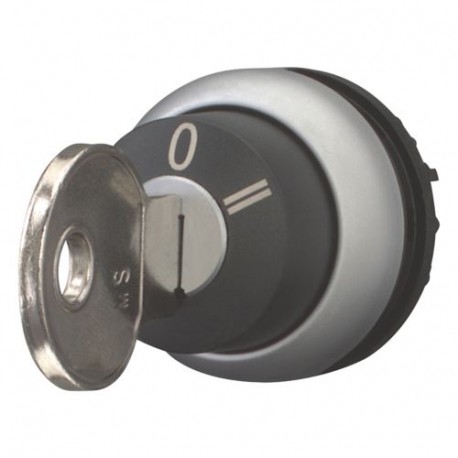

EATON - MOELLER M22-WRS3-MS3 M22-WRS3-MS3 111774 Y7-111774 EATON ELECTRIC Key-operated actuator, 3 positions, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WRS3-MS3 111774 Y7-111774 EATON ELECTRIC Key-operated actuator, 3 positions, maintained

M22-WRS3-MS3

111774

Y7-111774

EATON - MOELLER

1 Pcs.

Key-operated actuator, 3 positions, maintained M22-WRS3-MS3 Eaton Moeller® series M22 Key-operated actuator, maintained, 3 positions, MS3, Key withdrawable: I, 0, II, Bezel: titanium Key-operated actuator, Product range: RMQ-Titan, Single unit, Design: Key operated, maintained, Not suitable for master key systems, 3 positions, Lock mechanism: MS3, II, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Key withdraw convertible with coding adapters M22-XC-..., with plunger bridge for the middle contact, With 1 key, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Secure control stations against unauthorized use with the Eaton Moeller M22-WRS3-MS3 key-operated actuator. These devices are utilized across manufacturing systems to govern access to critical maintenance functions and secure operating states. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 3
  • Type of control element (EF006976): Key
  • Suitable for lighting (EF001142): false
  • Colour control element (EF007167): Black
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): true
  • Spring-return (EF001407): false
  • With front ring (EF006014): true
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Key-operated actuator
Catalog Number
111774
Model Code
M22-WRS3-MS3
EAN
4015081113248
Product Length/Depth
70 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.034 kg
Certifications
CSA
UL
CSA-C22.2 No. 14-05
VDE 0660
CE
CSA File No.: 012528
IEC/EN 60947
IEC/EN 60947-5
UL Category Control No.: NKCR
UL File No.: E29184
CSA-C22.2 No. 94-91
CSA Class No.: 3211-03
UL 508
DNV
GL
LR
