View larger
Images are for illustrative purposes only. Please refer to data sheet for details

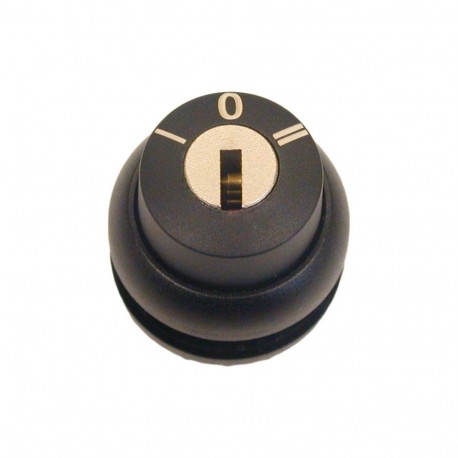

M22S-WRS3-MS* 216904 Y7-216904 EATON ELECTRIC Key-operated actuator, 3 positions, maintained, closure accord..
M22S-WRS3-MS*
216904
Y7-216904
EATON - MOELLER
1 Pcs.
Key-operated actuator, 3 positions, maintained, closure according to data
M22S-WRS3-MS*
Eaton Moeller® series M22 Key-operated actuator, maintained, 3 positions, MS1–MS20, Key withdrawable: I, 0, II, Bezel: black
Key-operated actuator, Product range: RMQ-Titan, Single unit, Design: Key operated, maintained, Not suitable for master key systems, 3 positions, Lock mechanism: selectable, I, II, Degree of Protection: IP66, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Key withdraw convertible with coding adapters M22-XC-..., with plunger bridge for the middle contact, With 1 key, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Key-operated actuator
Catalog Number
216904
Model Code
M22S-WRS3-MS*
Product Length/Depth
70 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.031 kg
Certifications
CSA Class No.: 3211-03
IEC/EN 60947
UL 508
UL Category Control No.: NKCR
UL File No.: E29184
CSA
IEC/EN 60947-5
VDE 0660
CSA File No.: 012528
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CE
UL
IEC/EN 60947
UL 508
UL Category Control No.: NKCR
UL File No.: E29184
CSA
IEC/EN 60947-5
VDE 0660
CSA File No.: 012528
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CE
UL
| Feature Name | Feature Value |
|---|---|
| Number of switch positions (EF000231) | 3 |
| Type of control element (EF006976) | Key |
| Suitable for lighting (EF001142) | No |
| Colour control element (EF007167) | Black |
| Colour indicator light cap (EF007165) | Other |
| Construction type lens (EF006253) | Round |
| Hole diameter (EF000079) | 22.5 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Switching function latching (EF007447) | Yes |
| Spring-return (EF001407) | No |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Plastic |
| Colour front ring (EF002429) | Black |
| Degree of protection (IP), front side (EF003118) | IP66 |
| Degree of protection (NEMA) (EF011959) | 4X, 13 |
