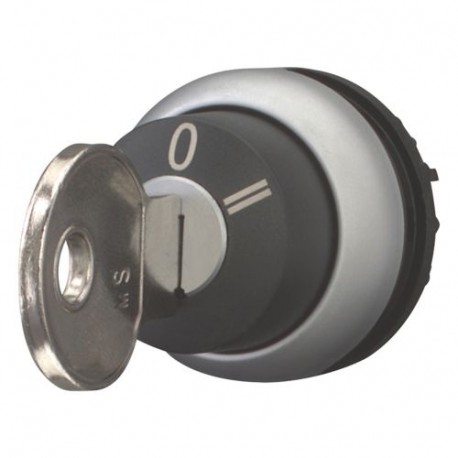

EATON - MOELLER M22-WRS3-MS* M22-WRS3-MS* 216903 Y7-216903 EATON ELECTRIC Key-operated actuator, 3 positions, maintained, closure accordi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WRS3-MS* 216903 Y7-216903 EATON ELECTRIC Key-operated actuator, 3 positions, maintained, closure accordi..

M22-WRS3-MS*

216903

Y7-216903

EATON - MOELLER

1 Pcs.

Key-operated actuator, 3 positions, maintained, closure according to data M22-WRS3-MS* Eaton Moeller® series M22 Key-operated actuator, maintained, 3 positions, MS1–MS20, Key withdrawable: I, 0, II, Bezel: titanium Key-operated actuator, Product range: RMQ-Titan, Single unit, Design: Key operated, maintained, Not suitable for master key systems, 3 positions, Lock mechanism: selectable, I, II, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Key withdraw convertible with coding adapters M22-XC-..., with plunger bridge for the middle contact, With 1 key, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22-WRS3-MS* key-operated actuators provide secure multi-position control for industrial switchboards, restricting operational changes to keyholders. The durable mechanical design integrates smoothly into standard control cutouts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 3
  • Type of control element (EF006976): Key
  • Suitable for lighting (EF001142): No
  • Colour control element (EF007167): Black
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Key-operated actuator
Catalog Number
216903
Model Code
M22-WRS3-MS*
Product Length/Depth
70 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.031 kg
Certifications
CSA File No.: 012528
IEC/EN 60947
CSA-C22.2 No. 94-91
CSA Class No.: 3211-03
IEC/EN 60947-5
VDE 0660
UL
CSA
UL 508
CE
UL File No.: E29184
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
DNV
GL
LR

Product Datasheet
