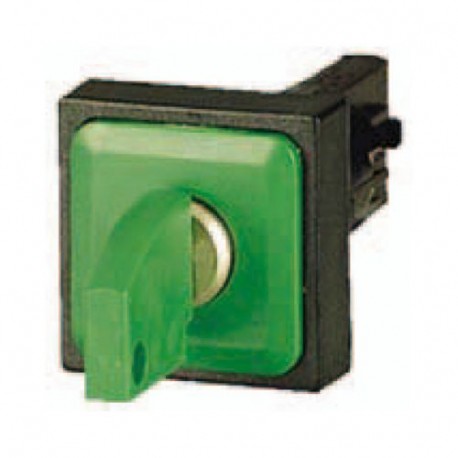

Q25S3R-GN 062147 Y7-62147 EATON ELECTRIC Key-operated actuator, 3 positions, green, maintained
Q25S3R-GN
062147
Y7-62147
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Offering restricted access control, the Eaton Moeller Q25S3R-GN key-operated actuator lets operators shift machinery between multiple defined states using a physical key. Such components prevent unauthorized adjustments on sensitive automation panels and electrical distribution boards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 3
- Type of control element (EF006976): Key
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): Green
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA) (EF011959): 1
More info
▲General specifications
UL File No.: E29184
CSA-C22.2 No. 14-05
CSA
CSA File No.: 46552
CSA Class No.: 3211-03
IEC/EN 60947
IEC/EN 60947-5
UL
UL Category Control No.: NKCR
UL 508
Features & Functions
General
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Ambient conditions, mechanical
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Actuator
Key withdrawable in position 0
Key withdrawable in position 2
Switching function latching
