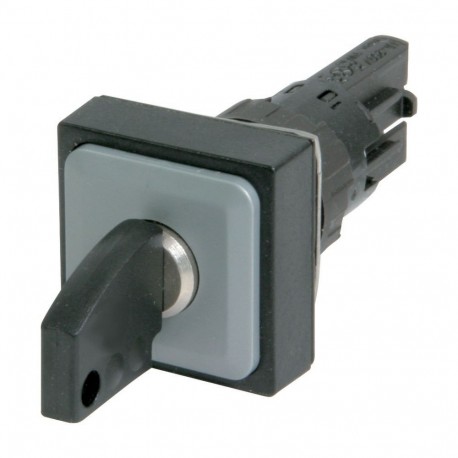

Q25S1-WS 046851 Y7-46851 EATON ELECTRIC Key-operated actuator, 2 positions, white, momentary
Q25S1-WS
046851
Y7-46851
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller Q25S1-WS key-operated actuator is a specialized control element utilized in automation switchboards to limit system access to authorized personnel. Turning a removable key initiates momentary contact routines for secure industrial control sequences.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Key
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): White
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA) (EF011959): 1
More info
▲General specifications
UL
CSA Class No.: 3211-03
CE
UL 508
UL Category Control No.: NKCR
CSA
IEC/EN 60947
UL File No.: E29184
IEC/EN 60947-5
CSA File No.: 46552
Features & Functions
General
2.8 x 0.8 mm to DIN 46244, Blade terminal
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Electrical rating
Actuator
Spring-return
Momentary
