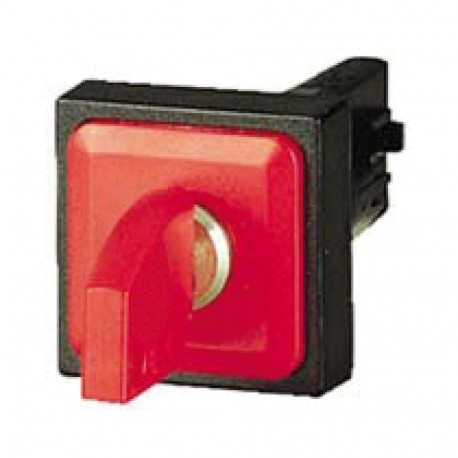

Q25S1R-RT 046839 Y7-46839 EATON ELECTRIC Key-operated actuator, 2 positions, red, maintained
Q25S1R-RT
046839
Y7-46839
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller key-operated actuator, part code Q25S1R-RT, offers reliable lockable control functionality for machinery panels requiring strict operational authorization. Compact key switches are frequently integrated into control desks to ensure that only designated technicians can engage or halt specialized production processes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Key
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): Red
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA) (EF011959): 1
More info
▲General specifications
IEC/EN 60947-5
UL
CSA-C22.2 No. 14-05
CE
CSA Class No.: 3211-03
UL File No.: E29184
CSA
UL Category Control No.: NKCR
CSA File No.: 46552
IEC/EN 60947
Features & Functions
General
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Actuator
Switching function latching
Key withdrawable in position 0
