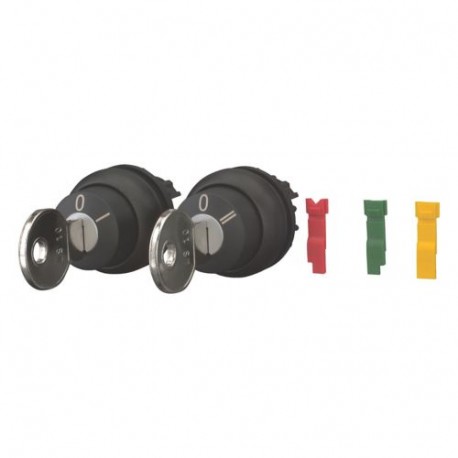

EATON - MOELLER M22S-WRS*-MS*-* M22S-WRS*-MS*-* 262522 Y7-262522 EATON ELECTRIC Key-operated actuator, 2 positions, maintained, type accordi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-WRS*-MS*-* 262522 Y7-262522 EATON ELECTRIC Key-operated actuator, 2 positions, maintained, type accordi..

M22S-WRS*-MS*-*

262522

Y7-262522

EATON - MOELLER

1 Pcs.

Key-operated actuator, 2 positions, maintained, type according to data M22S-WRS*-MS*-* Eaton Moeller® series M22 Key-operated actuator, maintained, Select from 2 or 3 positions, MS1–MS20: Key withdrawable: Selectable, Bezel: black Key-operated actuator for single locking (not for locking systems) with degree of protection IP66. The lock mechanism (MS2-MS20) is user-definable.

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A key-operated actuator is a specialized interface device deployed on control desks and machinery to prevent unauthorized switching and safely manage process states. It integrates into standard panel cutouts to provide secure, mechanical mode selection for industrial equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 2
  • Type of control element (EF006976): Key
  • Suitable for lighting (EF001142): No
  • Colour control element (EF007167): Black
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Key-operated actuator
Catalog Number
262522
Model Code
M22S-WRS*-MS*-*
Product Length/Depth
70 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.031 kg
Certifications
DNV
GL
IEC/EN 60947
LR
VDE 0660

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
