M22S-WRS-MS*-A1 217441 Y7-217441 EATON ELECTRIC Key-operated actuator, 2 positions, maintained, type accordi..
M22S-WRS-MS*-A1
217441
Y7-217441
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

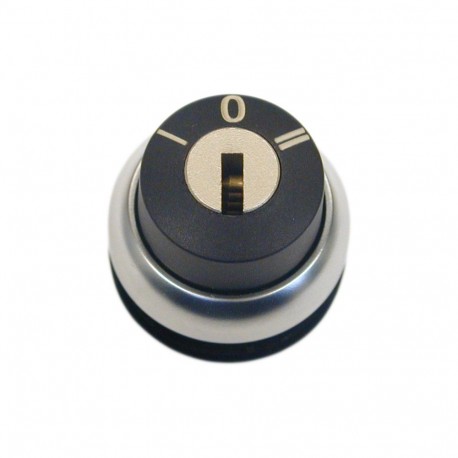

Eaton Moeller part number M22S-WRS-MS*-A1 is a key-operated actuator designed for secure machine control panels and industrial switchgear. Components of this type provide restricted access to operational modes, preventing unauthorized personnel from altering critical system states in automated environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Key
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): Black
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
IEC/EN 60947
UL 508
IEC/EN 60947-5
UL File No.: E29184
CE
CSA-C22.2 No. 94-91
CSA-C22.2 No. 14-05
CSA
VDE 0660
CSA File No.: 012528
CSA Class No.: 3211-03
UL Category Control No.: NKCR
Features & Functions
General
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Communication
Yes
Actuator
Maintained
Key withdrawable in position 0
