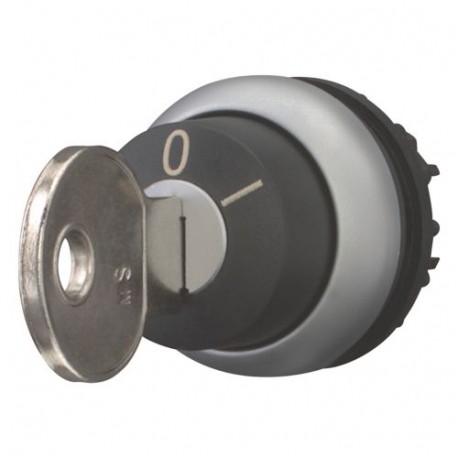

M22-WRS-MS*-A1 217440 Y7-217440 EATON ELECTRIC Key-operated actuator, 2 positions, maintained, type accordin..
M22-WRS-MS*-A1
217440
Y7-217440
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The M22-WRS-MS*-A1 217440 Y7-217440 EATON ELECTRIC Key-operated actuator, 2 positions, maintained, type accordin.. key-operated switch from Eaton Moeller provides secure authorization control on industrial control panels and machine enclosures. System builders rely on these units to prevent unauthorized operation and restrict mode switching to keyholders.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Key
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): Black
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Titanium
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
CSA-C22.2 No. 14-05
CSA
IEC/EN 60947
CE
UL File No.: E29184
CSA-C22.2 No. 94-91
IEC/EN 60947-5
UL 508
CSA Class No.: 3211-03
UL
UL Category Control No.: NKCR
CSA File No.: 012528
DNV
GL
LR
Features & Functions
Classical
General
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
Yes
Actuator
Switching function latching
Key withdrawable in position 0
