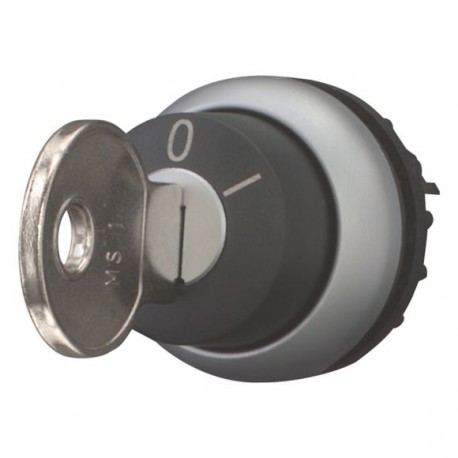

EATON - MOELLER M22-WRS-A1 M22-WRS-A1 229092 Y7-229092 EATON ELECTRIC Key-operated actuator, 2 positions, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WRS-A1 229092 Y7-229092 EATON ELECTRIC Key-operated actuator, 2 positions, maintained

M22-WRS-A1

229092

Y7-229092

EATON - MOELLER

5 Pcs.

Key-operated actuator, 2 positions, maintained M22-WRS-A1 Eaton Moeller® series M22 Key-operated actuator, maintained, 2 positions, Key withdrawable: 0, Bezel: titanium Key-operated actuator, Product range: RMQ-Titan, Single unit, Design: Key operated, maintained, Not suitable for master key systems, 2 positions, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Key withdraw convertible with coding adapters M22-XC-..., With 1 key, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22-WRS-A1 key-operated actuator provides secure, locked switching control for industrial automation equipment, ensuring that only authorized operators can alter machine states or engage specific modes. Such mechanisms are widely deployed in control cabinets. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 2
  • Type of control element (EF006976): Key
  • Suitable for lighting (EF001142): No
  • Colour control element (EF007167): Black
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Key-operated actuator
Catalog Number
229092
Model Code
M22-WRS-A1
EAN
4015082290924
Product Length/Depth
70 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.031 kg
Compliances
CE Marked
Certifications
EN 60947-5
IEC 60947-5
UL 508
CSA Std. C22.2 No. 14-05
CSA Std. C22.2 No. 94-91
VDE
IEC/EN 60947-5
CE
CSA File No.: 012528
IEC/EN 60947
CSA-C22.2 No. 94-91
UL Category Control No.: NKCR
CSA
CSA Class No.: 3211-03
UL File No.: E29184
UL
VDE 0660
CSA-C22.2 No. 14-05
DNV
GL
LR
