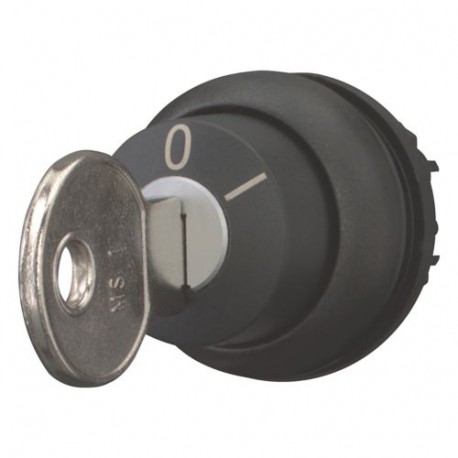

M22S-WRS 216889 Y7-216889 EATON ELECTRIC Key-operated actuator, 2 positions, maintained
M22S-WRS
216889
Y7-216889
EATON - MOELLER
5 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The M22S-WRS 216889 Y7-216889 EATON ELECTRIC Key-operated actuator, 2 positions, maintained is a secure control component used to toggle industrial equipment states while restricting access to authorized personnel only. These panel-mounted key actuators protect sensitive processes from accidental or unauthorized intervention.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Key
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): Black
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
IEC 60947-5
CSA Std. C22.2 No. 94-91
UL 508
CSA Std. C22.2 No. 14-05
VDE
UL File No.: E29184
CE
CSA File No.: 012528
CSA-C22.2 No. 14-05
CSA
CSA Class No.: 3211-03
UL
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
IEC/EN 60947
IEC/EN 60947-5
VDE 0660
DNV
GL
LR
Features & Functions
Classical
General
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
Yes
Actuator
Maintained
Key withdrawable in position 1
Switching function latching
