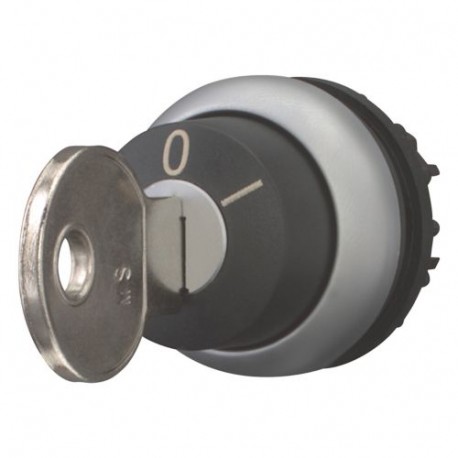

EATON - MOELLER M22-WRS-MS4-A1 M22-WRS-MS4-A1 111784 Y7-111784 EATON ELECTRIC Key-operated actuator, 2 positions, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WRS-MS4-A1 111784 Y7-111784 EATON ELECTRIC Key-operated actuator, 2 positions, maintained

M22-WRS-MS4-A1

111784

Y7-111784

EATON - MOELLER

1 Pcs.

Key-operated actuator, 2 positions, maintained M22-WRS-MS4-A1 Eaton Moeller® series M22 Key-operated actuator, maintained, 2 positions, MS4, Key withdrawable: 0, Bezel: titanium

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller M22-WRS-MS4-A1 is a robust key-operated actuator built for secure industrial switching tasks where unauthorized access must be restricted. Two-position maintained selectors are commonly integrated into control panels to govern power feeds and equipment operating modes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: M22-WRS-MS4-A1
  • Catalogue code: 111784
  • Catalogue title: M22-WRS-MS4-A1 111784 Y7-111784 EATON ELECTRIC Key-operated actuator, 2 positions, maintained
  • Product description: General specifications Product Name Eaton Moeller® series M22 Key-operated actuator Catalog Number 111784 Model Code M22-WRS-MS4-A1 EAN 4015081113347 Product Length/Depth 70 mm Product Height 30 mm Product Width 30 mm Pr
  • Manufacturer summary: Key-operated actuator, 2 positions, maintained M22-WRS-MS4-A1 Eaton Moeller® series M22 Key-operated actuator, maintained, 2 positions, MS4, Key withdrawable: 0, Bezel: titanium

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Key-operated actuator
Catalog Number
111784
Model Code
M22-WRS-MS4-A1
EAN
4015081113347
Product Length/Depth
70 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.034 kg
Certifications
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
IEC/EN 60947
CSA
UL
CSA File No.: 012528
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
IEC/EN 60947-5
UL 508
UL File No.: E29184
CE
VDE 0660
DNV
GL
LR

Product Datasheet
