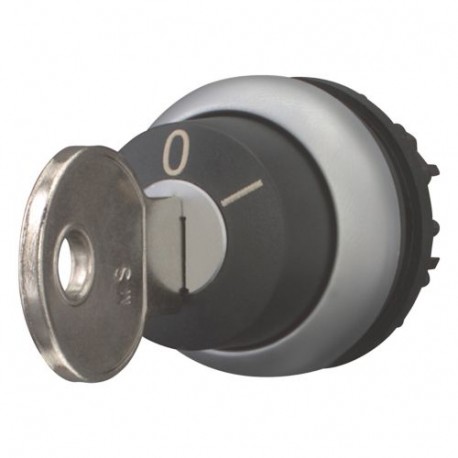

M22-WRS-MS3 111781 Y7-111781 EATON ELECTRIC Key-operated actuator, 2 positions, maintained
M22-WRS-MS3
111781
Y7-111781
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller M22-WRS-MS3 111781 Y7-111781 EATON ELECTRIC Key-operated actuator, 2 positions, maintained acts as a secure mechanical interface designed to command machine routines only when an authorized key is engaged. Panel builders integrate key operators into automation boards to restrict access to sensitive process settings. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Key
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): Black
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Titanium
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
IEC 60947-5
CSA Std. C22.2 No. 14-05
CSA Std. C22.2 No. 94-91
UL 508
VDE
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
UL File No.: E29184
CSA File No.: 012528
CSA-C22.2 No. 94-91
IEC/EN 60947
UL Category Control No.: NKCR
CE
CSA
UL
VDE 0660
IEC/EN 60947-5
Features & Functions
General
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
With SWD-RMQ connections
Actuator
Maintained
Key withdrawable in position 0
Key withdrawable in position 1
