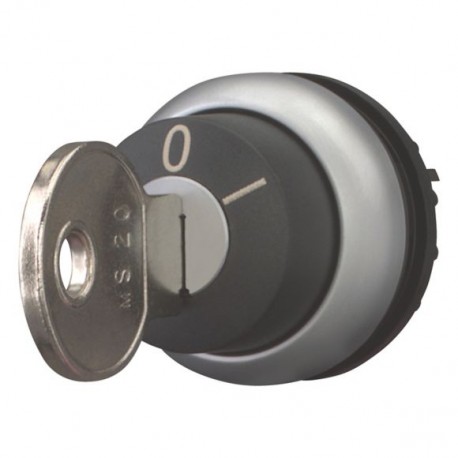

EATON - MOELLER M22-WRS-MS20 M22-WRS-MS20 111779 Y7-111779 EATON ELECTRIC Key-operated actuator, 2 positions, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WRS-MS20 111779 Y7-111779 EATON ELECTRIC Key-operated actuator, 2 positions, maintained

M22-WRS-MS20

111779

Y7-111779

EATON - MOELLER

1 Pcs.

Key-operated actuator, 2 positions, maintained M22-WRS-MS20 Eaton Moeller® series M22 Key-operated actuator, maintained, 2 positions, MS20, Key withdrawable: 0, I, Bezel: titanium

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Securing sensitive industrial processes against unauthorized access requires a dependable key-operated actuator, 2 positions, maintained such as this Eaton Moeller unit. Engineers deploy these locking devices on enclosure panels to restrict vital machine functions to authorized personnel only.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: M22-WRS-MS20
  • Catalogue code: 111779
  • Catalogue title: M22-WRS-MS20 111779 Y7-111779 EATON ELECTRIC Key-operated actuator, 2 positions, maintained
  • Product description: General specifications Product Name Eaton Moeller® series M22 Key-operated actuator Catalog Number 111779 Model Code M22-WRS-MS20 EAN 4015081113293 Product Length/Depth 70 mm Product Height 30 mm Product Width 30 mm Prod
  • Manufacturer summary: Key-operated actuator, 2 positions, maintained M22-WRS-MS20 Eaton Moeller® series M22 Key-operated actuator, maintained, 2 positions, MS20, Key withdrawable: 0, I, Bezel: titanium

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Key-operated actuator
Catalog Number
111779
Model Code
M22-WRS-MS20
EAN
4015081113293
Product Length/Depth
70 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.034 kg
Compliances
CE Marked
Certifications
UL 508
CSA Std. C22.2 No. 14-05
EN 60947-5
IEC 60947-5
CSA Std. C22.2 No. 94-91
VDE
VDE 0660
CSA
CSA File No.: 012528
CSA-C22.2 No. 14-05
UL File No.: E29184
CSA Class No.: 3211-03
UL
CSA-C22.2 No. 94-91
IEC/EN 60947-5
CE
IEC/EN 60947
UL Category Control No.: NKCR
DNV
GL
LR
