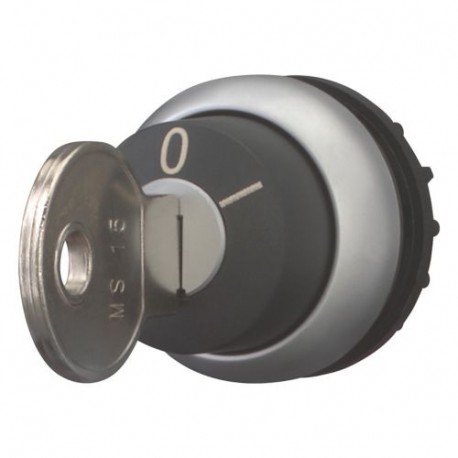

EATON - MOELLER M22-WRS-MS15 M22-WRS-MS15 111777 Y7-111777 EATON ELECTRIC Key-operated actuator, 2 positions, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WRS-MS15 111777 Y7-111777 EATON ELECTRIC Key-operated actuator, 2 positions, maintained

M22-WRS-MS15

111777

Y7-111777

EATON - MOELLER

1 Pcs.

Key-operated actuator, 2 positions, maintained M22-WRS-MS15 Eaton Moeller® series M22 Key-operated actuator, maintained, 2 positions, MS15, Key withdrawable: 0, I, Bezel: titanium Key-operated actuator, Product range: RMQ-Titan, Single unit, Design: Key operated, maintained, Not suitable for master key systems, 2 positions, Lock mechanism: MS15, I, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Key withdraw convertible with coding adapters M22-XC-..., With 1 key, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66

Automation > Front element for selector switch
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22-WRS-MS15 key-operated actuator provides secure, restricted access for mode control and circuit switching on industrial machinery. Locking mechanisms of this type prevent unauthorized operators from altering critical panel settings or running restricted processes.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Number of switch positions (EF000231): 2
  • Type of control element (EF006976): Key
  • Suitable for lighting (EF001142): false
  • Colour control element (EF007167): Black
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Switching function latching (EF007447): true
  • Spring-return (EF001407): false
  • With front ring (EF006014): true
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP), front side (EF003118): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Key-operated actuator
Catalog Number
111777
Model Code
M22-WRS-MS15
EAN
4015081113279
Product Length/Depth
70 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.034 kg
Compliances
CE Marked
Certifications
CSA Std. C22.2 No. 14-05
CSA Std. C22.2 No. 94-91
EN 60947-5
UL 508
IEC 60947-5
VDE
CSA-C22.2 No. 14-05
VDE 0660
UL
UL File No.: E29184
CSA File No.: 012528
CE
CSA
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
IEC/EN 60947-5
IEC/EN 60947
UL Category Control No.: NKCR
DNV
GL
LR
