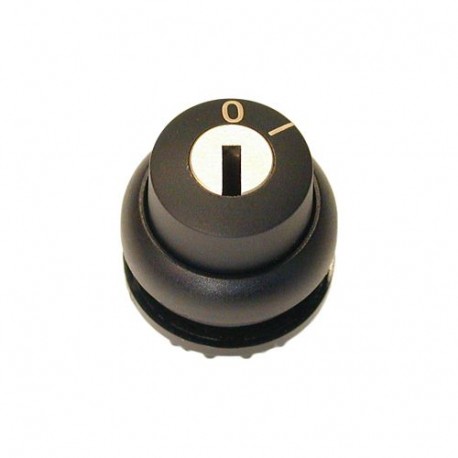

M22S-WRS-MS* 216891 Y7-216891 EATON ELECTRIC Key-operated actuator, 2 positions, maintained, closure accordi..
M22S-WRS-MS*
216891
Y7-216891
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller M22S-WRS-MS* is a key-operated actuator mounted on control panels to prevent unauthorized switching and secure industrial machinery operation. Technicians use key actuators to toggle specific electrical control circuits only when authorized maintenance or supervisory tasks are required.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Key
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): Black
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP66
- Degree of protection (NEMA) (EF011959): 4X, 13
More info
▲General specifications
CSA Std. C22.2 No. 14-05
UL 508
EN 60947-5
IEC 60947-5
VDE
VDE 0660
CE
IEC/EN 60947-5
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR
CSA
CSA File No.: 012528
CSA-C22.2 No. 94-91
IEC/EN 60947
UL
CSA Class No.: 3211-03
UL File No.: E29184
Features & Functions
General
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Communication
Yes
Actuator
Key withdrawable in position 0
Key withdrawable in position 1
Switching function latching
