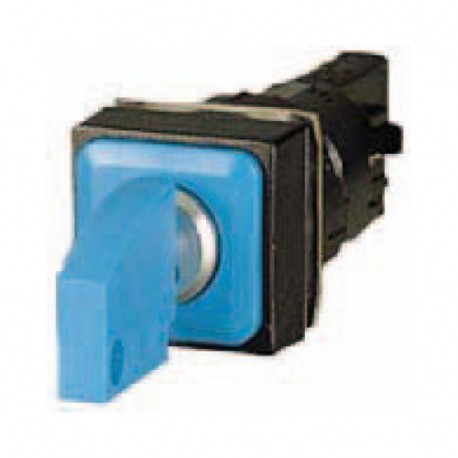

Q18S1-BL 045959 Y7-45959 EATON ELECTRIC Key-operated actuator, 2 positions, blue, momentary
Q18S1-BL
045959
Y7-45959
EATON - MOELLER
1 Pcs.
Automation > Front element for selector switch
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Eaton Moeller key-operated actuator (Q18S1-BL) serves as a secure manual control interface on industrial control panels, preventing unauthorized mode changes or system commands. Key-operated switches are commonly integrated into machinery enclosures to restrict operational access to authorized personnel only.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of switch positions (EF000231): 2
- Type of control element (EF006976): Key
- Suitable for lighting (EF001142): No
- Colour control element (EF007167): Blue
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA) (EF011959): 1
More info
▲General specifications
UL 508
CE
IEC/EN 60947
IEC/EN 60947-5
UL Category Control No.: NKCR
UL
UL File No.: E29184
CSA
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
Features & Functions
General
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Ambient conditions, mechanical
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Electrical rating
Actuator
Spring-return
Key withdrawable in position 0
