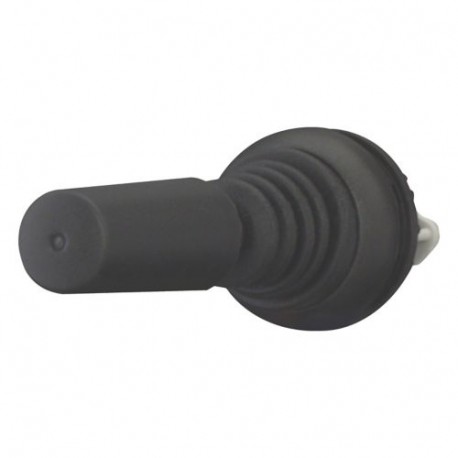

EATON - MOELLER M22S-WRJ4 M22S-WRJ4 279416 Y7-279416 EATON ELECTRIC Joystick, 4 positions, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-WRJ4 279416 Y7-279416 EATON ELECTRIC Joystick, 4 positions, maintained

M22S-WRJ4

279416

Y7-279416

EATON - MOELLER

1 Pcs.

Joystick, 4 positions, maintained M22S-WRJ4 Eaton Moeller® series M22 Joystick, with one operating point per operating direction, With plastic shaft, 4 positions, Bezel: black, maintained Joystick, Product range: RMQ-Titan, Single unit, Description: with one operating point per operating direction, With plastic shaft, 4 positions, Degree of Protection: IP66, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: - N/A -, Function: maintained, Standards: IEC/EN 60947, VDE 0660

Automation > Control switch, Joystick
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22S-WRJ4 joystick provides a robust manual interface for multi-directional control across four distinct positions on industrial equipment enclosures. Operators use this hardware style to maintain selective directional settings within automated environments.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-21, 400 V (EF002417): 0 A
  • Centre mounting, hole diameter (EF002424): 22.5 mm
  • Joy stick length (EF006524): 75 mm
  • Number of actuation directions (EF002425): 4
  • Number of switch positions (EF000231): 1
  • Number of make-and-break contacts per direction (EF005599): 0
  • With retraction in 0-position (EF002428): No
  • Locking in 0-position (EF006283): No
  • Coder (EF005666): No
  • Analogue output signal configurable (EF003236): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Joystick
Catalog Number
279416
Model Code
M22S-WRJ4
EAN
4015082794163
Product Length/Depth
95 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.028 kg
Certifications
CSA Class No.: 3211-03
CSA
UL File No.: E29184
VDE 0660
IEC/EN 60947
UL
IEC/EN 60947-5
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
CE
CSA-C22.2 No. 14-05
CSA File No.: 012528
UL 508

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
