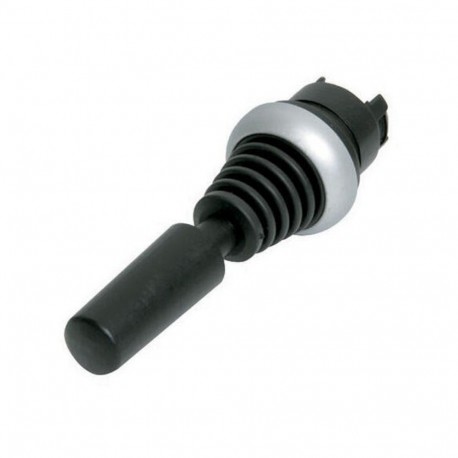

EATON - MOELLER M22-WRJ4 M22-WRJ4 279415 Y7-279415 EATON ELECTRIC Joystick 4 positions, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WRJ4 279415 Y7-279415 EATON ELECTRIC Joystick 4 positions, maintained

M22-WRJ4

279415

Y7-279415

EATON - MOELLER

5 Pcs.

Joystick 4 positions, maintained M22-WRJ4 Eaton Moeller® series M22 Joystick, with one operating point per operating direction, With plastic shaft, 4 positions, Bezel: titanium, maintained, in every position Joystick, Product range: RMQ-Titan, Single unit, Description: with one operating point per operating direction, With plastic shaft, 4 positions, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: - N/A -, Function: maintained, in every position, Standards: IEC/EN 60947, VDE 0660

Automation > Control switch, Joystick
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller joystick provides four-position maintained control for complex industrial machinery and automated material handling systems. Operators rely on these durable units to maintain specific operational states during continuous manufacturing processes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-21, 400 V (EF002417): 0 A
  • Centre mounting, hole diameter (EF002424): 22.5 mm
  • Joy stick length (EF006524): 75 mm
  • Number of actuation directions (EF002425): 4
  • Number of switch positions (EF000231): 1
  • Number of make-and-break contacts per direction (EF005599): 0
  • With retraction in 0-position (EF002428): No
  • Locking in 0-position (EF006283): No
  • Coder (EF005666): No
  • Analogue output signal configurable (EF003236): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Joystick
Catalog Number
279415
Model Code
M22-WRJ4
EAN
4015082794156
Product Length/Depth
95 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.028 kg
Compliances
CE Marked
Certifications
IEC 60947-5
CSA Std. C22.2 No. 14-05
CSA Std. C22.2 No. 94-91
EN 60947-5
UL 508
VDE
CE
UL Category Control No.: NKCR
UL
IEC/EN 60947
VDE 0660
CSA File No.: 012528
CSA-C22.2 No. 94-91
CSA-C22.2 No. 14-05
UL File No.: E29184
CSA Class No.: 3211-03
CSA
IEC/EN 60947-5
