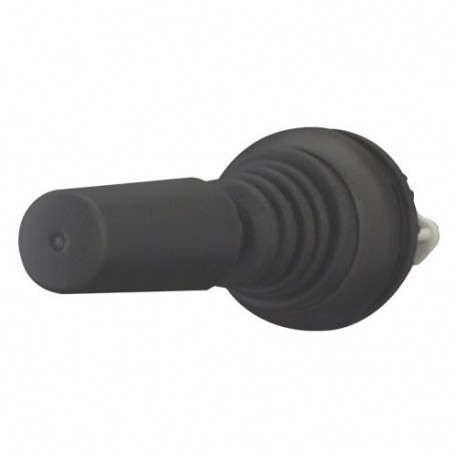

EATON - MOELLER M22S-WJ2V M22S-WJ2V 289198 Y7-289198 EATON ELECTRIC Joystick 2 positions, vertical momentary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-WJ2V 289198 Y7-289198 EATON ELECTRIC Joystick 2 positions, vertical momentary

M22S-WJ2V

289198

Y7-289198

EATON - MOELLER

1 Pcs.

Joystick 2 positions, vertical momentary M22S-WJ2V Eaton Moeller® series M22 Joystick, with one operating point per operating direction, With plastic shaft, 2 positions, Bezel: black, momentary, Vertical Joystick, Product range: RMQ-Titan, Single unit, Description: with one operating point per operating direction, With plastic shaft, 2 positions, Degree of Protection: IP66, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: - N/A -, Function: momentary, Vertical, Standards: IEC/EN 60947, VDE 0660

Automation > Control switch, Joystick
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22S-WJ2V joystick offers reliable manual actuation for two-position vertical tasks on industrial control panels. Operators rely on such interface devices to trigger momentary machine motions or select specific operational modes during active processes.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-21, 400 V (EF002417): 0 A
  • Centre mounting, hole diameter (EF002424): 22.5 mm
  • Joy stick length (EF006524): 75 mm
  • Number of actuation directions (EF002425): 2
  • Number of switch positions (EF000231): 1
  • Number of make-and-break contacts per direction (EF005599): 0
  • With retraction in 0-position (EF002428): Yes
  • Locking in 0-position (EF006283): No
  • Coder (EF005666): No
  • Analogue output signal configurable (EF003236): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Joystick
Catalog Number
289198
Model Code
M22S-WJ2V
EAN
4015082891985
Product Length/Depth
100 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.028 kg
Certifications
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
IEC/EN 60947-5
VDE 0660
IEC/EN 60947
UL 508
CSA
CSA-C22.2 No. 94-91
UL Category Control No.: NKCR
UL File No.: E29184
CSA File No.: 012528
CE
UL

Product Datasheet
