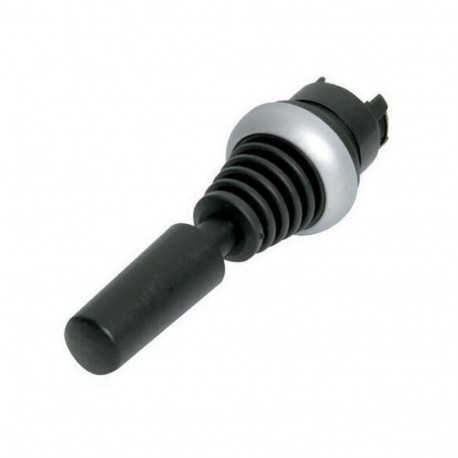

EATON - MOELLER M22-WRJ2V M22-WRJ2V 289240 Y7-289240 EATON ELECTRIC Joystick 2 positions, vertical, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WRJ2V 289240 Y7-289240 EATON ELECTRIC Joystick 2 positions, vertical, maintained

M22-WRJ2V

289240

Y7-289240

EATON - MOELLER

1 Pcs.

Joystick 2 positions, vertical, maintained M22-WRJ2V Eaton Moeller® series M22 Joystick, with one operating point per operating direction, With plastic shaft, 2 positions, Bezel: titanium, maintained, Vertical Joystick, Product range: RMQ-Titan, Single unit, Description: with one operating point per operating direction, With plastic shaft, 2 positions, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: - N/A -, Function: maintained, Vertical, Standards: IEC/EN 60947, VDE 0660

Automation > Control switch, Joystick
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

M22-WRJ2V 289240 Y7-289240 EATON ELECTRIC Joystick 2 positions, vertical, maintained acts as a panel-mounted operator control device used to command industrial automation sequences and motorized equipment. This device allows operators to maintain manual control positions for specific operational modes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-21, 400 V: 0 A
  • Centre mounting, hole diameter: 22.5 mm
  • Joy stick length: 75 mm
  • Number of actuation directions: 2
  • Number of switch positions: 0
  • Number of make-and-break contacts per direction: 0
  • With retraction in 0-position: No
  • Locking in 0-position: No
  • Coder: No
  • Analogue output signal configurable: No
  • With front ring: Yes
  • Material front ring: Plastic
  • Colour front ring: Titanium
  • Degree of protection (IP): IP66
  • Degree of protection (NEMA): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Joystick
Catalog Number
289240
Model Code
M22-WRJ2V
EAN
4015082892401
Product Length/Depth
100 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.038 kg
Compliances
CE Marked
Certifications
UL 508
EN 60947-5
CSA Std. C22.2 No. 14-05
CSA Std. C22.2 No. 94-91
IEC 60947-5
VDE
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
IEC/EN 60947-5
CSA
UL File No.: E29184
CSA Class No.: 3211-03
IEC/EN 60947
CSA File No.: 012528
VDE 0660
CSA-C22.2 No. 94-91
CE
UL
