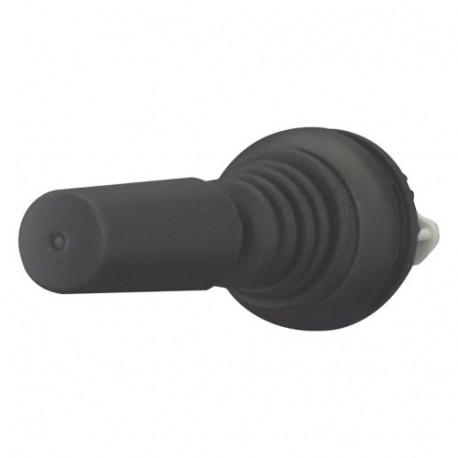

EATON - MOELLER M22S-WJ2H M22S-WJ2H 289197 Y7-289197 EATON ELECTRIC Joystick 2 positions, horizontal momentary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-WJ2H 289197 Y7-289197 EATON ELECTRIC Joystick 2 positions, horizontal momentary

M22S-WJ2H

289197

Y7-289197

EATON - MOELLER

1 Pcs.

Joystick 2 positions, horizontal momentary M22S-WJ2H Eaton Moeller® series M22 Joystick, with one operating point per operating direction, With plastic shaft, 2 positions, Bezel: black, momentary, Horizontal Joystick, Product range: RMQ-Titan, Single unit, Description: with one operating point per operating direction, With plastic shaft, 2 positions, Degree of Protection: IP66, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: - N/A -, Function: momentary, Horizontal, Standards: IEC/EN 60947, VDE 0660

Automation > Control switch, Joystick
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Joystick
Catalog Number
289197
Model Code
M22S-WJ2H
EAN
4015082891978
Product Length/Depth
100 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.028 kg
Certifications
UL Category Control No.: NKCR
IEC/EN 60947-5
CSA-C22.2 No. 94-91
UL File No.: E29184
VDE 0660
CSA Class No.: 3211-03
CSA File No.: 012528
CE
CSA
IEC/EN 60947
UL
UL 508
CSA-C22.2 No. 14-05

Features & Functions

Bezel color
Black
Bezel material
Plastic
Fitted with:
Front ring
Plastic shaft
Filament bulb (24 V)
Retraction in 0-position

General

Degree of protection
IP66
NEMA 4X, 13
Lifespan, mechanical
100,000 Operations
Opening diameter
22.5 mm
Operating frequency
2000 Operations/h
Product Category
RMQ-Titan
Type
Joystick

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Electrical rating

Rated operational current (Ie) at AC-21, 400 V, 415 V
0 A

Communication

Connection to SmartWire-DT
Yes
With SWD-RMQ connections

Actuator

Actuating force
5 N
Actuator function
Momentary
Horizontal
Number of actuation directions
2

Contacts

Force for positive opening - min
0 N

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 289197 Low-voltage industrial controls and switchgear (EC000632)
Feature Name Feature Value
Rated operation current Ie at AC-21, 400 V (EF002417) 0 A
Centre mounting, hole diameter (EF002424) 22.5 mm
Joy stick length (EF006524) 75 mm
Number of actuation directions (EF002425) 2
Number of switch positions (EF000231) 1
Number of normally open contacts per actuation direction (EF002427) 0
Number of normally closed contacts per actuation direction (EF008263) 0
Number of make-and-break contacts per direction (EF005599) 0
With retraction in 0-position (EF002428) Yes
Locking in 0-position (EF006283) No
Coder (EF005666) No
Analogue output signal configurable (EF003236) No
With front ring (EF006014) Yes
Material front ring (EF005972) Plastic
Colour front ring (EF002429) Black
Degree of protection (IP) (EF005474) IP66
Degree of protection (NEMA) (EF011959) 4X, 13

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
