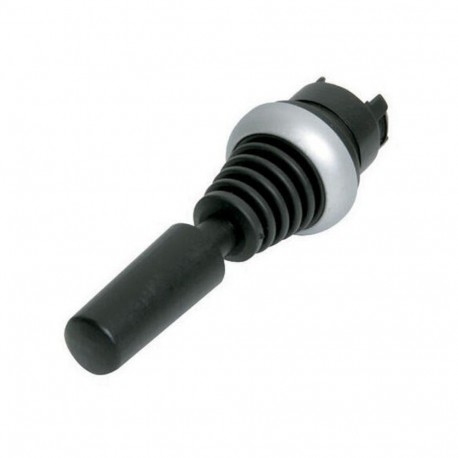

EATON - MOELLER M22-WRJ2H M22-WRJ2H 289199 Y7-289199 EATON ELECTRIC Joystick 2 positions, horizontal, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-WRJ2H 289199 Y7-289199 EATON ELECTRIC Joystick 2 positions, horizontal, maintained

M22-WRJ2H

289199

Y7-289199

EATON - MOELLER

1 Pcs.

Joystick 2 positions, horizontal, maintained M22-WRJ2H Eaton Moeller® series M22 Joystick, with one operating point per operating direction, With plastic shaft, 2 positions, Bezel: titanium, maintained, Horizontal Joystick, Product range: RMQ-Titan, Single unit, Description: with one operating point per operating direction, With plastic shaft, 2 positions, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: - N/A -, Function: maintained, Horizontal, Standards: IEC/EN 60947, VDE 0660

Automation > Control switch, Joystick
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A joystick 2 positions, horizontal, maintained is designed to maintain selected switching states in industrial control applications without continuous manual pressure. This makes it ideal for sustained operational tasks on machinery desks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-21, 400 V (EF002417): 0 A
  • Centre mounting, hole diameter (EF002424): 22.5 mm
  • Joy stick length (EF006524): 75 mm
  • Number of actuation directions (EF002425): 2
  • Number of switch positions (EF000231): 0
  • Number of make-and-break contacts per direction (EF005599): 0
  • With retraction in 0-position (EF002428): No
  • Locking in 0-position (EF006283): No
  • Coder (EF005666): No
  • Analogue output signal configurable (EF003236): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Joystick
Catalog Number
289199
Model Code
M22-WRJ2H
EAN
4015082891992
Product Length/Depth
100 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.038 kg
Compliances
CE Marked
Certifications
EN 60947-5
UL 508
CSA Std. C22.2 No. 14-05
IEC 60947-5
CSA Std. C22.2 No. 94-91
VDE
CSA File No.: 012528
UL File No.: E29184
CSA-C22.2 No. 14-05
IEC/EN 60947-5
VDE 0660
CSA-C22.2 No. 94-91
CSA Class No.: 3211-03
IEC/EN 60947
UL
UL Category Control No.: NKCR
CE
CSA
