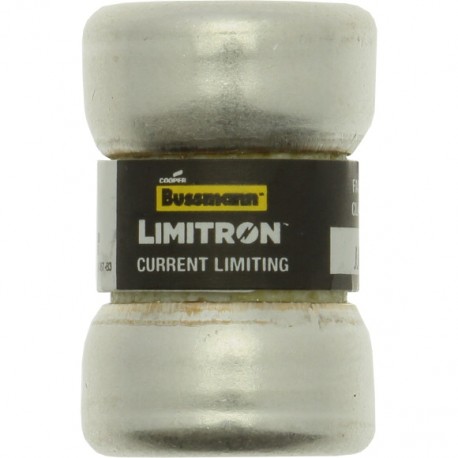

EATON - MOELLER JJN-50V JJN-50V EATON ELECTRIC Fuse-link, low voltage, 50 A, AC 300 V, DC 160 V, 22.2 x 14.3, T, UL, very fast acting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

JJN-50V EATON ELECTRIC Fuse-link, low voltage, 50 A, AC 300 V, DC 160 V, 22.2 x 14.3, T, UL, very fast acting

JJN-50V

JJN50V

EATON - MOELLER

10 Pcs.

TRON FAST ACTING W/END TERMINALS CLASS T TRON FAST ACTING W/END TERMINALS CLASS T - Fuse-link, low voltage, 50 A, DC 160 V, 20 kA, 22.2 x 14.3, T, UL, very fast acting

Automation > Low Voltage HRC fuse
Bussmann Series High speed fuses

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller JJN-50V is a very fast-acting low-voltage Class T fuse equipped with end terminals, designed for dependable circuit protection in compact industrial power distribution systems. Fast-acting fuses limit fault currents quickly to protect sensitive downstream equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: JJN-50V
  • Catalogue code: JJN50V
  • Catalogue title: JJN-50V EATON ELECTRIC Fuse-link, low voltage, 50 A, AC 300 V, DC 160 V, 22.2 x 14.3, T, UL, very fast acting
  • Manufacturer summary: TRON FAST ACTING W/END TERMINALS CLASS T TRON FAST ACTING W/END TERMINALS CLASS T - Fuse-link, low voltage, 50 A, DC 160 V, 20 kA, 22.2 x 14.3, T, UL, very fast acting

More info

▲
Fuse-link, low voltage, 50 A, DC 160 V, 20 kA, 22.2 x 14.3, T, UL, very fast acting
Fuse, Fuse-link, low voltage, 50 A, AC 300 V, DC 160 V, 22.2 x 14.3, T, UL, very fast acting, Breaking Capacity 200 kA

Delivery program

Product range
Fuse
Basic function
Fuse-link
Field of application
low voltage
Rated current [I]
50 A
Rated voltage
DC 160 V
Size
22.2 x 14.3
Utilization category
T
Breaking Capacity
20 kA
usable for size/applications
Large apartment complexes, multi-family meter stacks, VFD line protection
Release characteristic [class]
very fast acting
Standard/Approval
UL

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse (EC000055)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse inserts / Low-Voltage HRC fuse ([email protected] [AFZ800015])
Construction size
Other
Rated current
50 A
Rated voltage
300 V
Voltage type
AC/DC
Rated switching capacity
200 kA
Utilization category
Other
Type of fuse status indicator
None
Insulated metal gripping lugs (IMGL)
No
