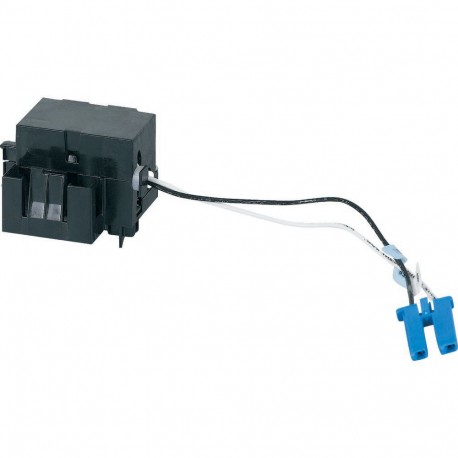

EATON - MOELLER IZMX-SR60DC-1 IZMX-SR60DC-1 184285 67C2822G65 EATON ELECTRIC Closing electromagnet 60 VDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

IZMX-SR60DC-1 184285 67C2822G65 EATON ELECTRIC Closing electromagnet 60 VDC

IZMX-SR60DC-1

184285

Y7-184285

EATON - MOELLER

1 Pcs.

Closing electromagnet 60 VDC IZMX-SR60DC-1 Eaton Moeller series IZMX/INX - ACB. Closing release 60 VDC, 1 Accessories, closing release, Can be combined with a shunt release and an undervoltage release., Retrofitting kit, Maximum operating frequency Actuations/minute 3, Limited to 3/min due to the high pick-up current for 35 ms., Please note - the circuit-breaker's switching frequency = 60/h, Rated control voltage Us 60 V DC V, Operating range x US 0,85 - 1,1 Factor, max. pick-up current (35ms) In 7.84 A, max. pull-in power (35ms) AC/DC 540 VA/W, Circuit-breaker total switching time @ US=100% 35 ms, For use with IZMX16..., IZMX40..., INX16..., INX40...

Automation > Shunt release (for power circuit breaker)
Circuit Breakers IZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

IZMX-SR60DC-1 184285 67C2822G65 EATON ELECTRIC Closing electromagnet 60 VDC functions as an internal operating accessory designed to remotely close heavy-duty electrical circuit breakers. These electromechanical coils are routinely deployed within industrial switchgear assemblies to allow automated or remote control of power distribution systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage AC 50 Hz (EF003978): 0 V
  • Rated control supply voltage AC 60 Hz (EF003979): 0 V
  • Rated control supply voltage DC (EF003980): 60 V
  • Voltage type for actuating (EF008242): DC
  • Power consumption (EF000346): 540 W
  • Type of electric connection (EF003961): Flat plug-in connection
  • Number of contacts as normally open contact (EF008256): 0
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of contacts as change-over contact (EF008257): 0
  • Suitable for power circuit breaker (EF005863): Yes
  • Suitable for off-load switch (EF001543): Yes
  • Suitable for motor safety switch (EF005826): No
  • Suitable for overload relay (EF001545): Yes

More info

▲

General specifications

Product Name
Eaton Moeller series IZMX/INX closing release
Catalog Number
184285
Model Code
IZMX-SR60DC-1
EAN
4015081784257
Product Length/Depth
100 mm
Product Height
100 mm
Product Width
100 mm
Product Weight
0.068 kg
Compliances
RoHS conform
