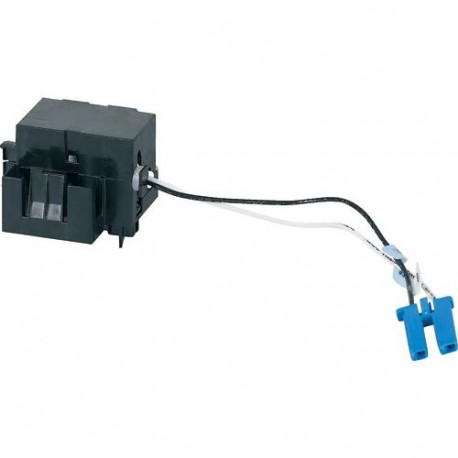

EATON - MOELLER +IZMX-SR60DC-1 +IZMX-SR60DC-1 184284 67C2822G55 EATON ELECTRIC Closing electromagnet 60 VDC. Can only be sold assembled. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IZMX-SR60DC-1 184284 67C2822G55 EATON ELECTRIC Closing electromagnet 60 VDC. Can only be sold assembled.

+IZMX-SR60DC-1

184284

Y7-184284

EATON - MOELLER

1 Pcs.

Closing electromagnet 60 VDC. Can only be sold assembled. +IZMX-SR60DC-1 Closing release 60 VDC Accessories, closing release, Can be combined with a shunt release and an undervoltage release., Maximum operating frequency Actuations/minute 3, Limited to 3/min due to the high pick-up current for 35 ms., Please note - the circuit-breaker's switching frequency = 60/h, Rated control voltage Us 60 V DC V, Operating range x US 0,85 - 1,1 Factor, max. pick-up current (35ms) In 7.84 A, max. pull-in power (35ms) AC/DC 540 VA/W, Circuit-breaker total switching time @ US=100% 35 ms, For use with IZMX16..., IZMX40..., INX16..., INX40...

Automation > Shunt release (for power circuit breaker)
Circuit Breakers IZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Representing a vital accessory for heavy-duty switching hardware, this +IZMX-SR60DC-1 184284 67C2822G55 EATON ELECTRIC Closing electromagnet remotely actuates power circuit breakers and off-load switches. Maintenance personnel utilize these internal electromechanical coils within switchgear panels to facilitate automated or remote switching operations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage AC 50 Hz (EF003978): 0 V
  • Rated control supply voltage AC 60 Hz (EF003979): 0 V
  • Rated control supply voltage DC (EF003980): 60 V
  • Voltage type for actuating (EF008242): DC
  • Type of electric connection (EF003961): Flat plug-in connection
  • Number of contacts as normally open contact (EF008256): 0
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of contacts as change-over contact (EF008257): 0
  • Suitable for power circuit breaker (EF005863): Yes
  • Suitable for off-load switch (EF001543): Yes
  • Suitable for motor safety switch (EF005826): No
  • Suitable for overload relay (EF001545): No

More info

▲

General specifications

Product Name
Eaton Moeller series IZMX/INX closing release
Catalog Number
184284
Model Code
+IZMX-SR60DC-1
EAN
4015081797103
Product Length/Depth
100 mm
Product Height
100 mm
Product Width
100 mm
Product Weight
0.068 kg
Compliances
RoHS conform

Delivery program

Type
Accessory
Accessory/spare part type
Remote switching

Technical data - electrical

Voltage type
DC
Control voltage operating range
0.85 - 1.1 x Us
60 V DC
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
60 V
Rated control supply voltage (Us) at DC - max
60 V
Adjustment range undelayed short-circuit release (end value) - max
0 A
Pick-up power consumption at 35 ms - max
540 VA/W
Circuit breaker total switching time
35 ms (Us = 100%) (IZMX40…, INX40…)
30 ms (Us = 100%) (IZMX16…, INX16…)
Initial value of the undelayed short-circuit release - min
0 A

Technical data - mechanical

Number of actuation per minute - max
3
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
0
Number of contacts (normally open contacts)
0

Design verification as per IEC/EN 61439 - technical data

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Additional information

Special features
Suitable for
Power circuit breaker
Off-load switch
Used with
INX16..., INX40...
IZMX16..., IZMX40...
