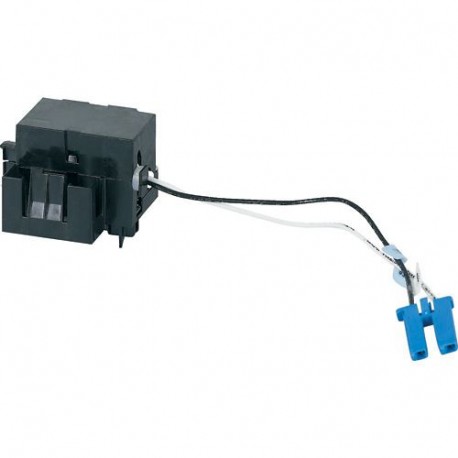

EATON - MOELLER +IZMX-SR48DC-1 +IZMX-SR48DC-1 184282 Y7-184282 EATON ELECTRIC Closing electromagnet 48 VDC. Can only be sold assembled. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IZMX-SR48DC-1 184282 Y7-184282 EATON ELECTRIC Closing electromagnet 48 VDC. Can only be sold assembled.

+IZMX-SR48DC-1

184282

Y7-184282

EATON - MOELLER

1 Pcs.

Closing electromagnet 48 VDC. Can only be sold assembled. +IZMX-SR48DC-1 Closing release 48 VDC Accessories, closing release, Can be combined with a shunt release and an undervoltage release., Maximum operating frequency Actuations/minute 3, Limited to 3/min due to the high pick-up current for 35 ms., Please note - the circuit-breaker's switching frequency = 60/h, Rated control voltage Us 48 V DC V, Operating range x US 0,85 - 1,1 Factor, max. pick-up current (35ms) In 10 A, max. pull-in power (35ms) AC/DC 530 VA/W, Circuit-breaker total switching time @ US=100% 35 ms, For use with IZMX16..., IZMX40..., INX16..., INX40...

Automation > Shunt release (for power circuit breaker)
Circuit Breakers IZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller closing electromagnet designated as +IZMX-SR48DC-1 184282 Y7-184282 EATON ELECTRIC Closing electromagnet 48 VDC provides remote electrical closing actuation for high-capacity air circuit breakers and switchgear mechanisms. Control system builders integrate these shunt coils to enable automated switching operations within industrial power networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage AC 50 Hz (EF003978): 0 V
  • Rated control supply voltage AC 60 Hz (EF003979): 0 V
  • Rated control supply voltage DC (EF003980): 48 V
  • Voltage type for actuating (EF008242): DC
  • Type of electric connection (EF003961): Flat plug-in connection
  • Number of contacts as normally open contact (EF008256): 0
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of contacts as change-over contact (EF008257): 0
  • Suitable for power circuit breaker (EF005863): Yes
  • Suitable for off-load switch (EF001543): Yes
  • Suitable for motor safety switch (EF005826): No
  • Suitable for overload relay (EF001545): No

More info

▲
Closing release 48 VDC
Accessories, closing release, Can be combined with a shunt release and an undervoltage release., Maximum operating frequency Actuations/minute 3, Limited to 3/min due to the high pick-up current for 35 ms., Please note - the circuit-breaker's switching frequency = 60/h, Rated control voltage Us 48 V DC V, Operating range x US 0,85 - 1,1 Factor, max. pick-up current (35ms) In 10 A, max. pull-in power (35ms) AC/DC 530 VA/W, Circuit-breaker total switching time @ US=100% 35 ms, For use with IZMX16..., IZMX40..., INX16..., INX40...

General specifications
Product name
Eaton Moeller series IZMX/INX closing release
Part no.
+IZMX-SR48DC-1
EAN
4015081797097
Product Length/Depth
100 millimetre
Product height
100 millimetre
Product width
100 millimetre
Product weight
0.068 kilogram
Compliances
RoHS conform
Product Tradename
IZMX/INX
Product Type
Accessories
Product Sub Type
Closing release
Delivery program
Type
Accessory
Special features
Can be combined with a shunt release and an undervoltage release.
Limited to 3/min due to the high pick-up current for 35 ms.
Please note - the circuit-breaker's switching frequency = 60/h
Suitable for
Off-load switch
Power circuit breaker
Used with
IZMX16..., IZMX40...
INX16..., INX40...
Technical Data - Electrical
Voltage type
DC
Control voltage operating range
0.85 - 1.1 x Us
48 V DC
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
48 V
Rated control supply voltage (Us) at DC - max
48 V
Adjustment range undelayed short-circuit release (end value) - max
0 A
Pick-up power consumption at 35 ms - max
530 VA/W
Circuit breaker total switching time
35 ms (Us = 100%) (IZMX40…, INX40…)
30 ms (Us = 100%) (IZMX16…, INX16…)
Initial value of the undelayed short-circuit release - min
0 A
Electric connection type
Flat plug-in connection
Technical Data - Mechanical
Number of actuation per minute - max
3
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
0
Number of contacts (normally open contacts)
0
Design verification as per IEC/EN 61439 - technical data
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Additional information
Accessory/spare part type
Remote switching
